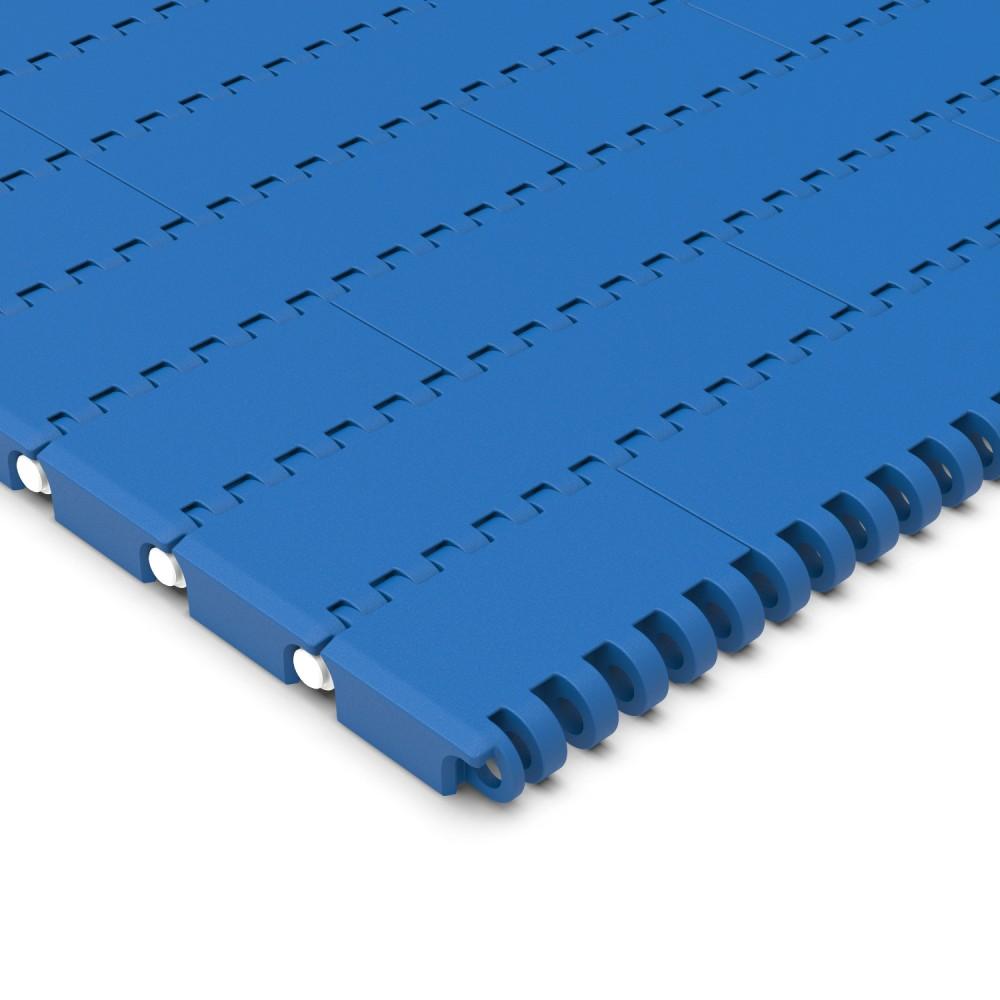

7900 Flat Top
Modular Belts
Belts wider than standard are available with 2 inch increments.
Non-standard widths are available with 1 inch increments.
The nominal tensile strength and the nominal width tolerance are valid for a temperature of 23°C (73 °F).
The actual belt width may differ from the nominal value depending on the material used, with the following percentage tolerances:
For POM belts, the variation ranges from 0% to -0.5%.
For PP belts, the variation ranges from -0.5% to +0.5%.
Product configuration
| Series: | 79007900 |
|---|---|
| Pitch: | 27.2 mm1.071 in |
| Thickness: | 9.8 mm0.386 in |
| Increments: | 2" - 50,8 mm2" - 50,8 mm |
| Surface Type: | FT - Flat TopFT - Flat Top |
| Functionality: | StraightStraight |
| Unit of measure: | Ea |
