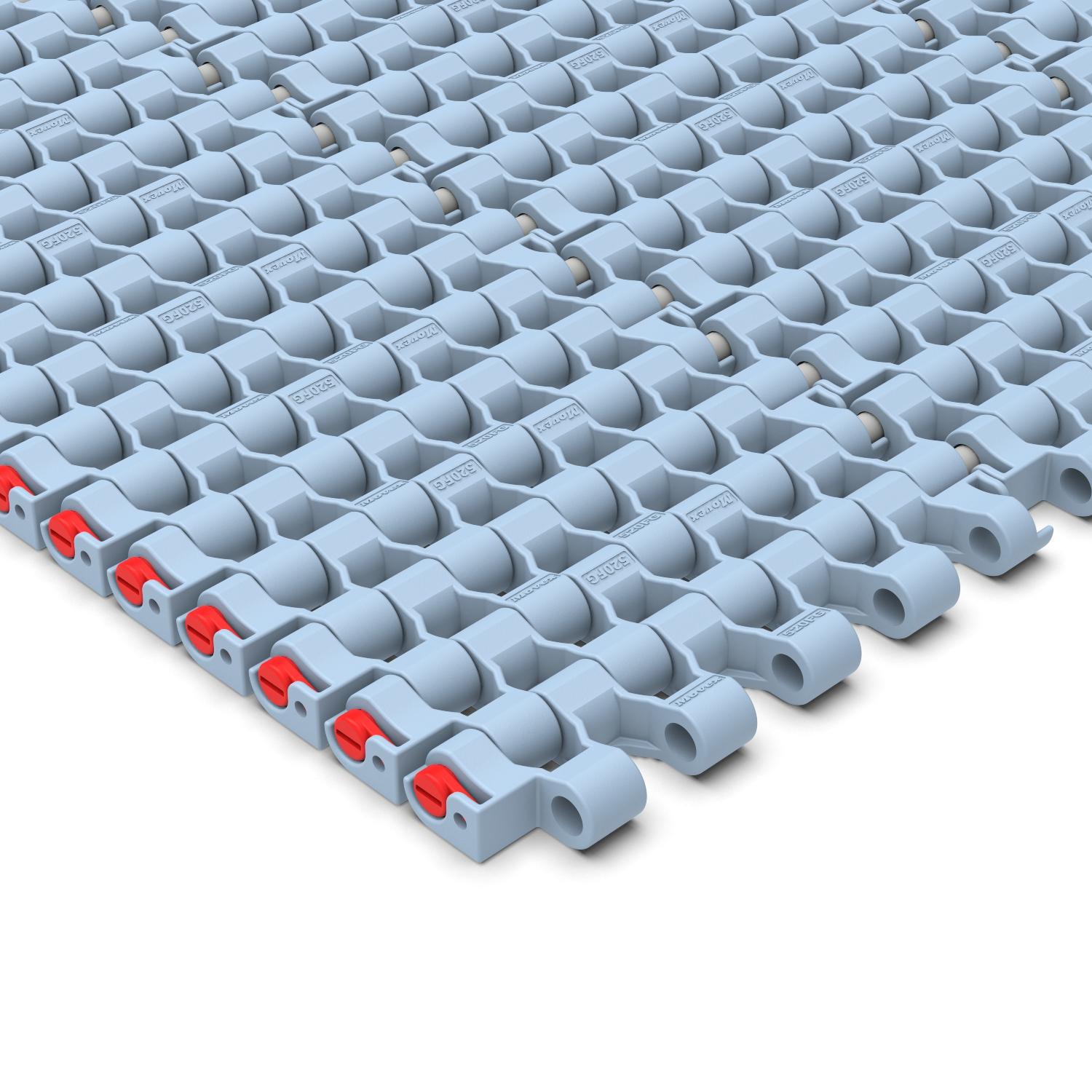

520 Flush Grid
Modular Belts

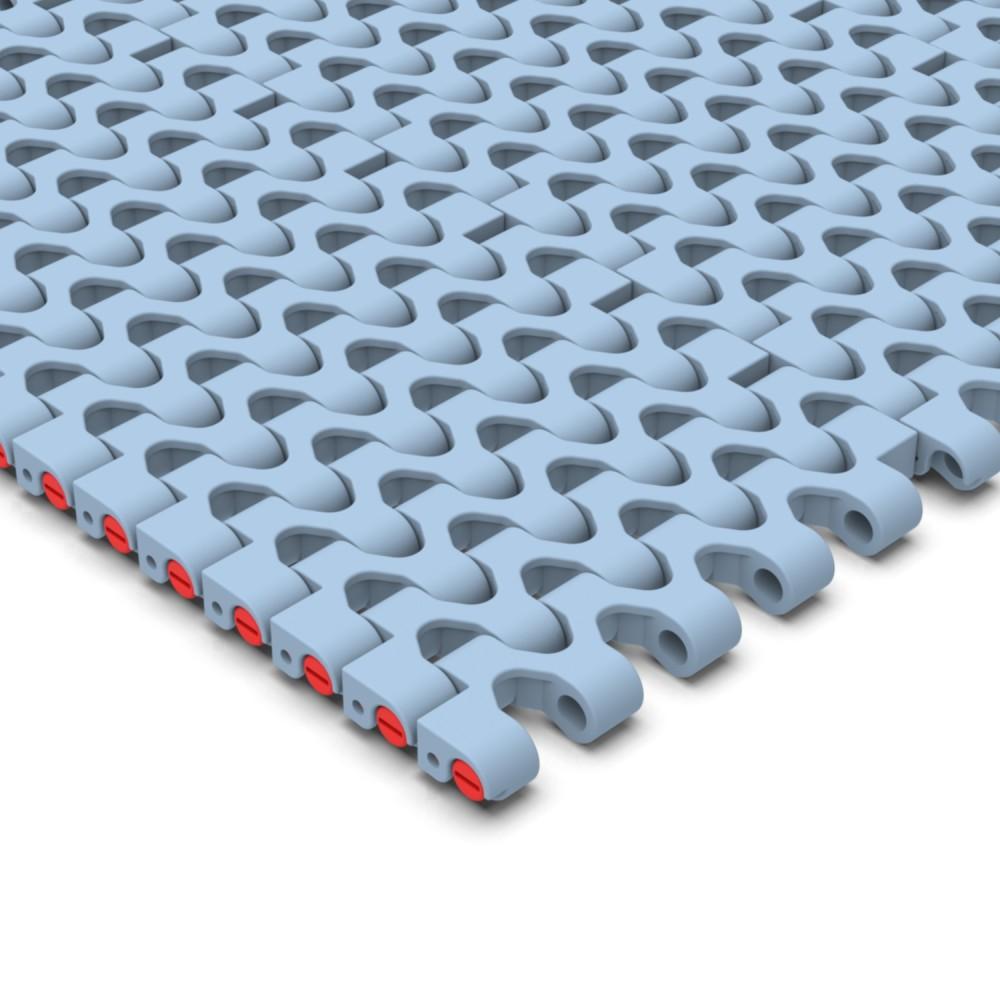

Flush Grid modular belts with open surface help draining water and dirt from the running surface.
Product configuration
Metric
Imperial
reset selects
Radius
-
Width
Select Width
85 mm (3,35")
170 mm (6,69")
255 mm (10,04")
340 mm (13,39")
425 mm (16,73")
510 mm (20,08")
595 mm (23,43")
680 mm (26,77")
765 mm (30,12")
850 mm (33,46")
935 mm (36,81")
1020 mm (40,16")
1105 mm (43,50")
1190 mm (46,85")
1275 mm (50,20")
1360 mm (53,54")
1445 mm (56,89")
1530 mm (60,24")
Angle
-
Material
Select Material
LFA - Low friction acetal (01)
MX - Performance PBT (03)
LFB - Low friction acetal (23)
PP - Polypropylene (02)
MPX - Lubricated Acetal (25)
DKM - Aramide Reinforced Acetal (16)
MWX - Polyamide Composite (17)
Pin material
-
Version
Select Version
A - No positioners
B - 1 Positioner
C - 2 Positioners
Basic features
Product features
Download
Series:
520
520
Pitch:
12.7
mm
0.500
in
Thickness:
8.7
mm
0.343
in
Increments:
85 mm
85 mm
Surface Type:
FG - Flush Grid
FG - Flush Grid
Functionality:
Straight
Straight
Unit of measure:
Meter
Box:
-
