,522 Heavy Duty Flat Top
,522 Heavy Duty Flat Top

522 Heavy Duty Flat Top

Modular Belts

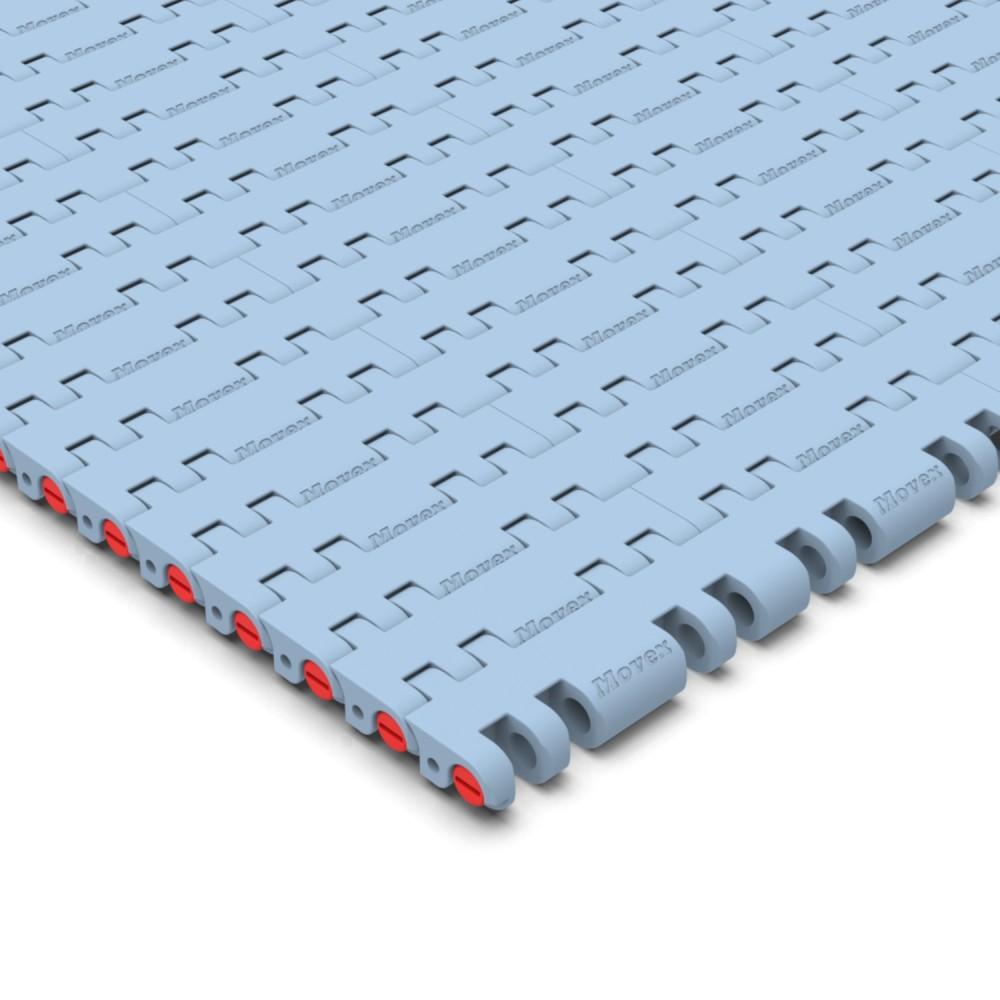

The new Movex ® 522 HD Flat Top one-track & modular belt is the perfect solution for any type of packaging machinery, from food to beverage industries as well as all the other consumer goods. The wide range of One-Track belts (6 different widths) is ideal also for folding and gluing machinery, thanks to the high-speed capacity, it generates low noise and vibration, it results quick in maintenance and is a perfect combination of reduced transfers and high working loads. Available versions with positioners assure a correct guidance, minimize side-movements and improve the machine performance. Available materials are Low Friction Acetal, MX Performance PBT and PFX Extra Performance PBT, able to minimize coefficient of friction and wear over carried products.

Product configuration

Series:522522
Pitch:12.7 mm0.500 in
Thickness:8.7 mm0.343 in
Increments:50 mm50 mm
Surface Type:FT - Flat TopFT - Flat Top
Functionality:StraightStraight
Unit of measure:Meter
Box:-
