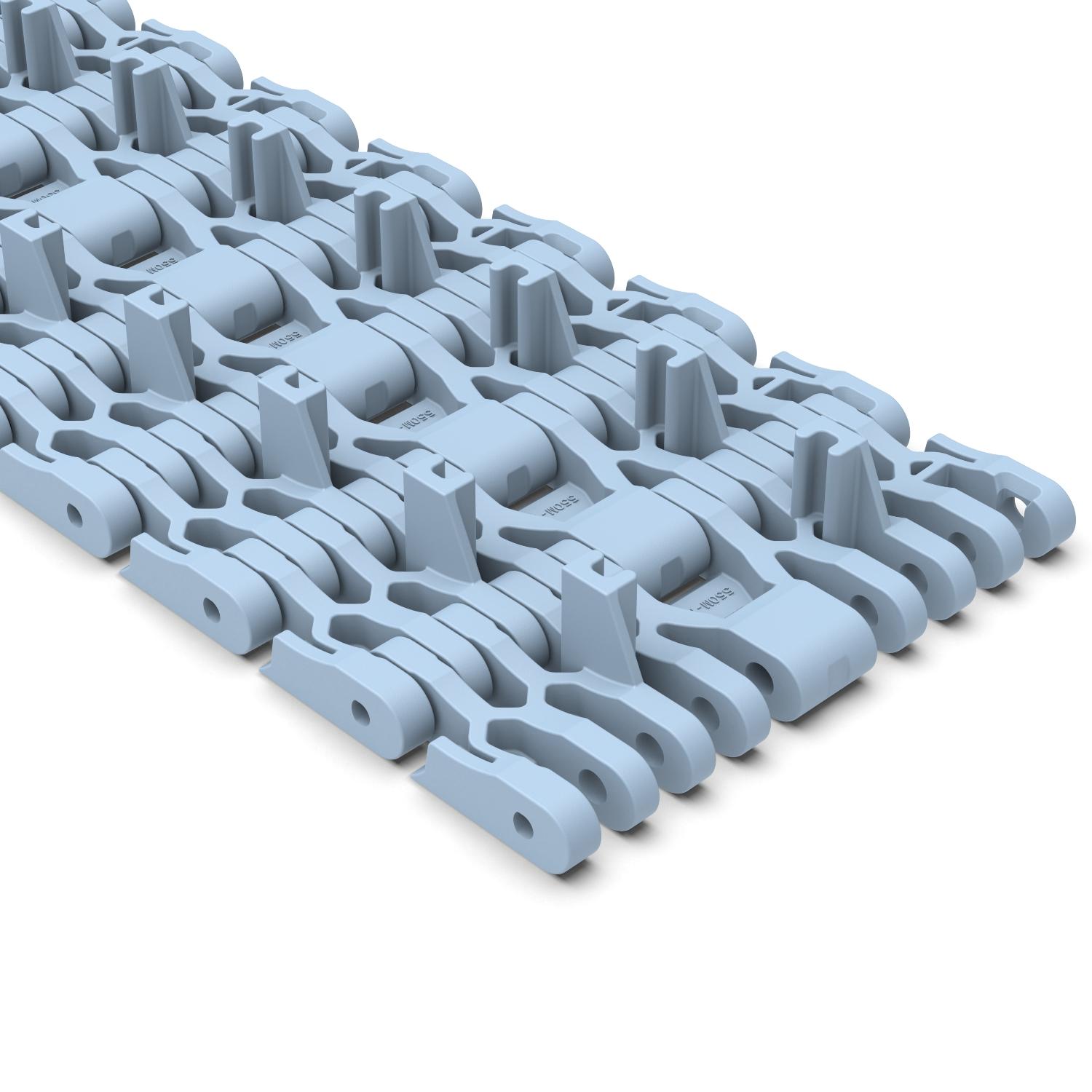

550 PRO Magnetic

The 550 PRO M is designed to create the optimum support in magnetic curves, specific for the most instable products like PET bottles. The standard radius of 500 mm in combination with the special designed hinge creates the optimized situation for instable products. The new 550 PRO M 1”pitch chain-belt with standard double positioner and MTW (mold-to-width) 83.8 mm (K330), offers a perfect solution for side-flexing applications in combination with our 550 PRO FT straight running belt series. The use of an identical sprocket for the straight running 550 PRO FT and the side-flexing 550 PRO M assures also an identical speed for both belts, another advantage which avoids the risk that instable products tend to tumble over. The new clip-design, assures a perfect pin-locking system without any risk that the clip will open during operation. The 550 PRO M and 550 PRO FT are available in standard polyacetal but also in special materials like the Movex® MX and PFX material which are both excellent materials for applications where limited lubrication is applicable or even NO lubrication is required. The lower weight of the new 550 PRO M contributes also to the sustainable goals. The lower weight results in less energy consumption during full speed operation.
