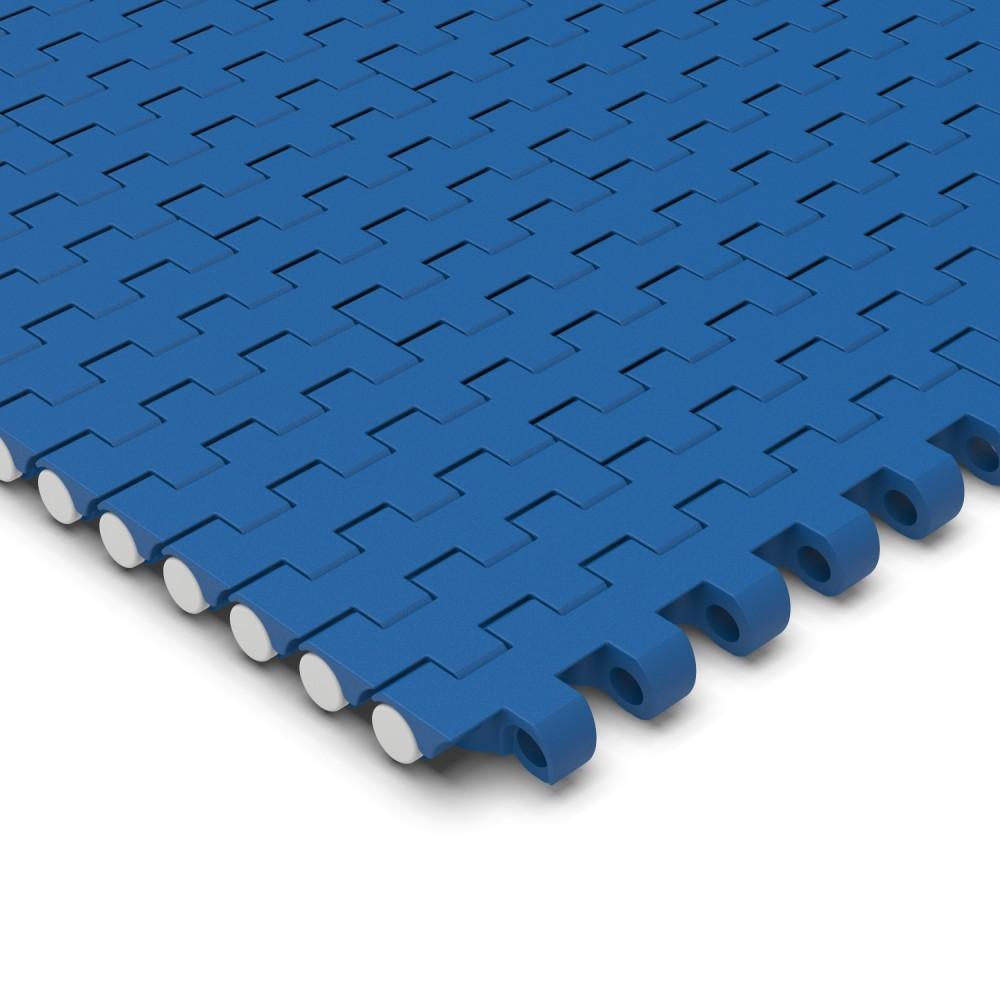

7220 Flat Top

*Belts wider than standard are available with 50 mm increments. The nominal tensile strength and the nominal width tolerance are valid for a temperature of 23°C (73 °F). The actual width of the belt typically falls below the nominal value by 0.1% to 0.3%. For PE belts up to 750 mm (30”) in width, the reduction ranges from -3 mm to 1 mm, and for widths beyond that, from -0.4% to 0.1%. For POM belts up to 750 mm (30”) in width, the shrinkage ranges from -2 mm to 1 mm, and for those wider, from -0.25% to -0.25%. For PP belts up to 750 mm (30”) in width, the decrease is between -1 mm and 2 mm, with the reduction for wider belts ranging from 0% to -0.45%. Non-Standard belt widths are incremented by 16.65 mm (0.66”). The minimum width is 50 mm (2”). Non-bricklayed belts are available in widths of 50 mm (2”), 100 mm (4”) and 200 mm (8”).
