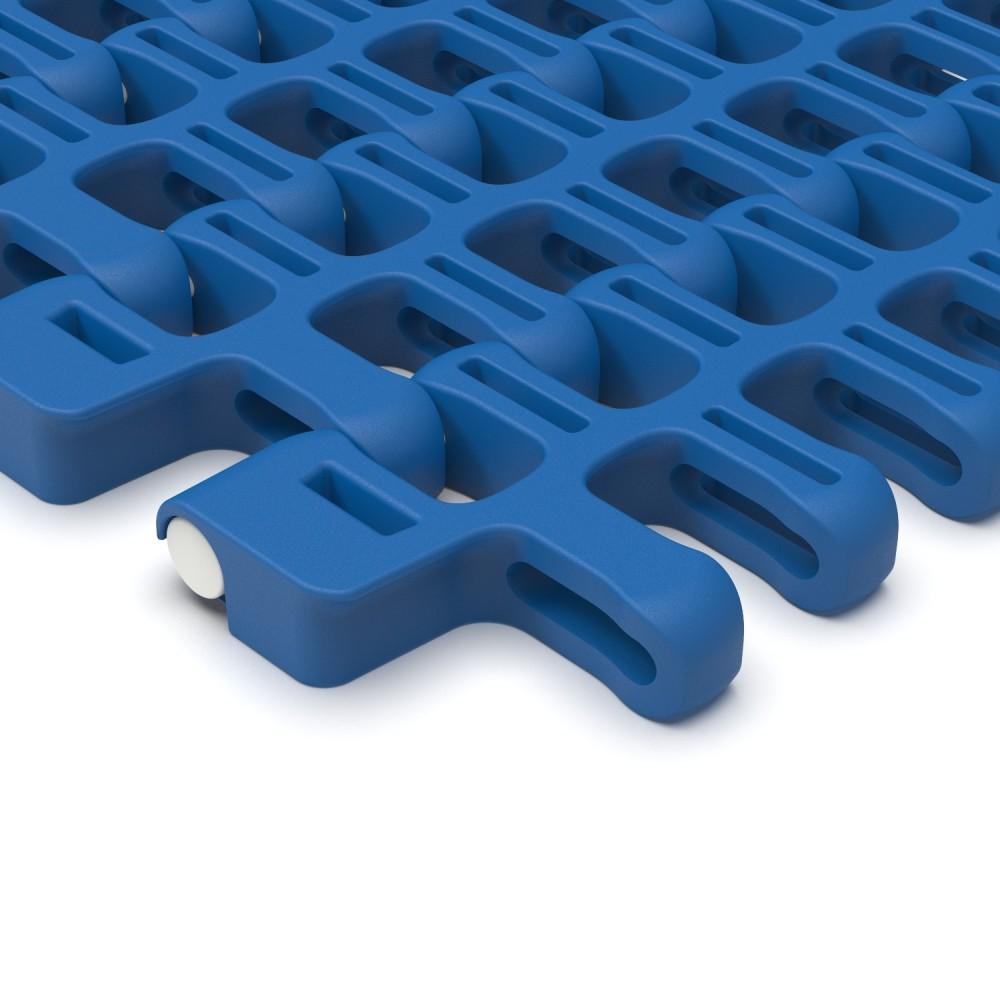

7293 Tight Radius Flush Grid
Modular Belts
Belts wider than standard are available with 2 inch increments.
Non-standard widths are available with 1 inch increments.
The nominal tensile strength and the nominal width tolerance are valid for a temperature of 23°C (73 °F).
The actual belt width may differ from the nominal value depending on the material used, with the following percentage tolerances:
For POM belts, the variation ranges from 0% to -0.5%.
For PP belts, the variation ranges from -0.5% to +0.5%.
Product configuration
| Series: | 7290-72937290-7293 |
|---|---|
| Pitch: | 50.8 mm2.000 in |
| Thickness: | 16 mm0.630 in |
| Increments: | 2" - 50,8 mm2" - 50,8 mm |
| Surface Type: | FG - Flush GridFG - Flush Grid |
| Functionality: | Side-FlexingSide-Flexing |
| Unit of measure: | Ea |
