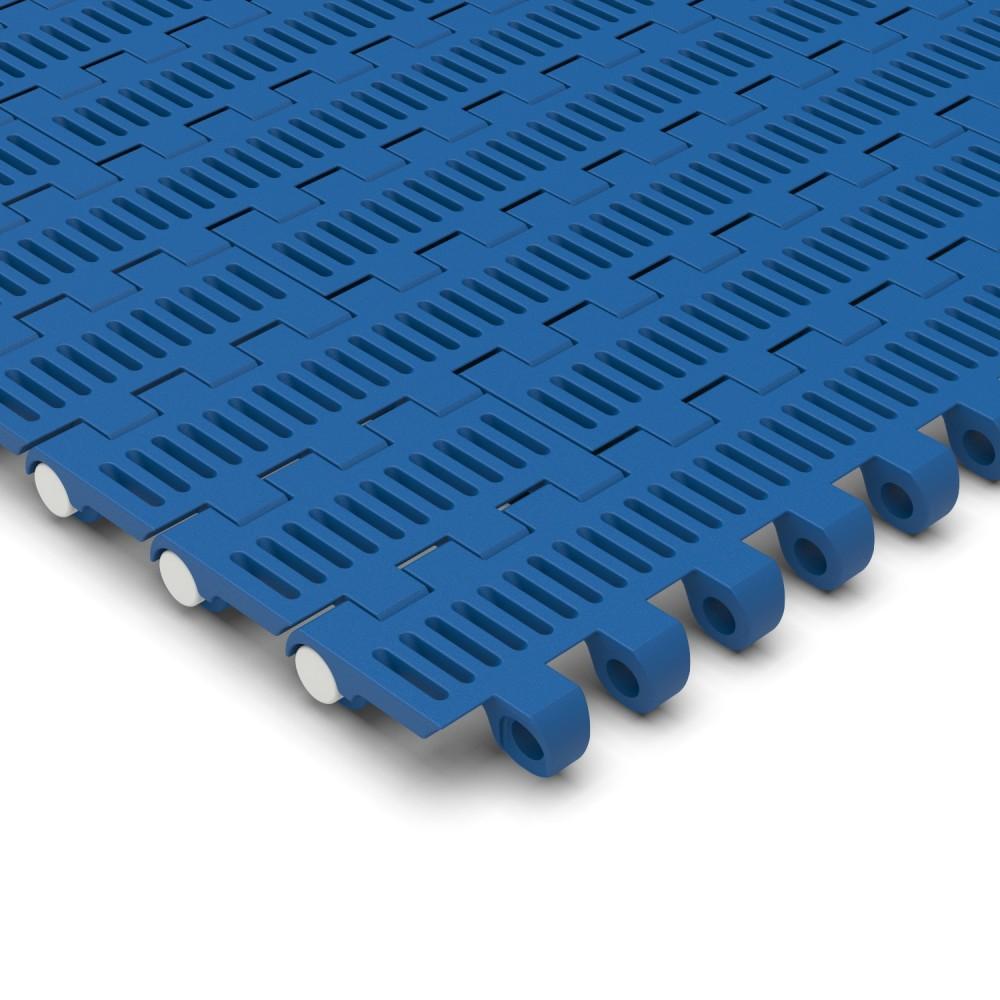

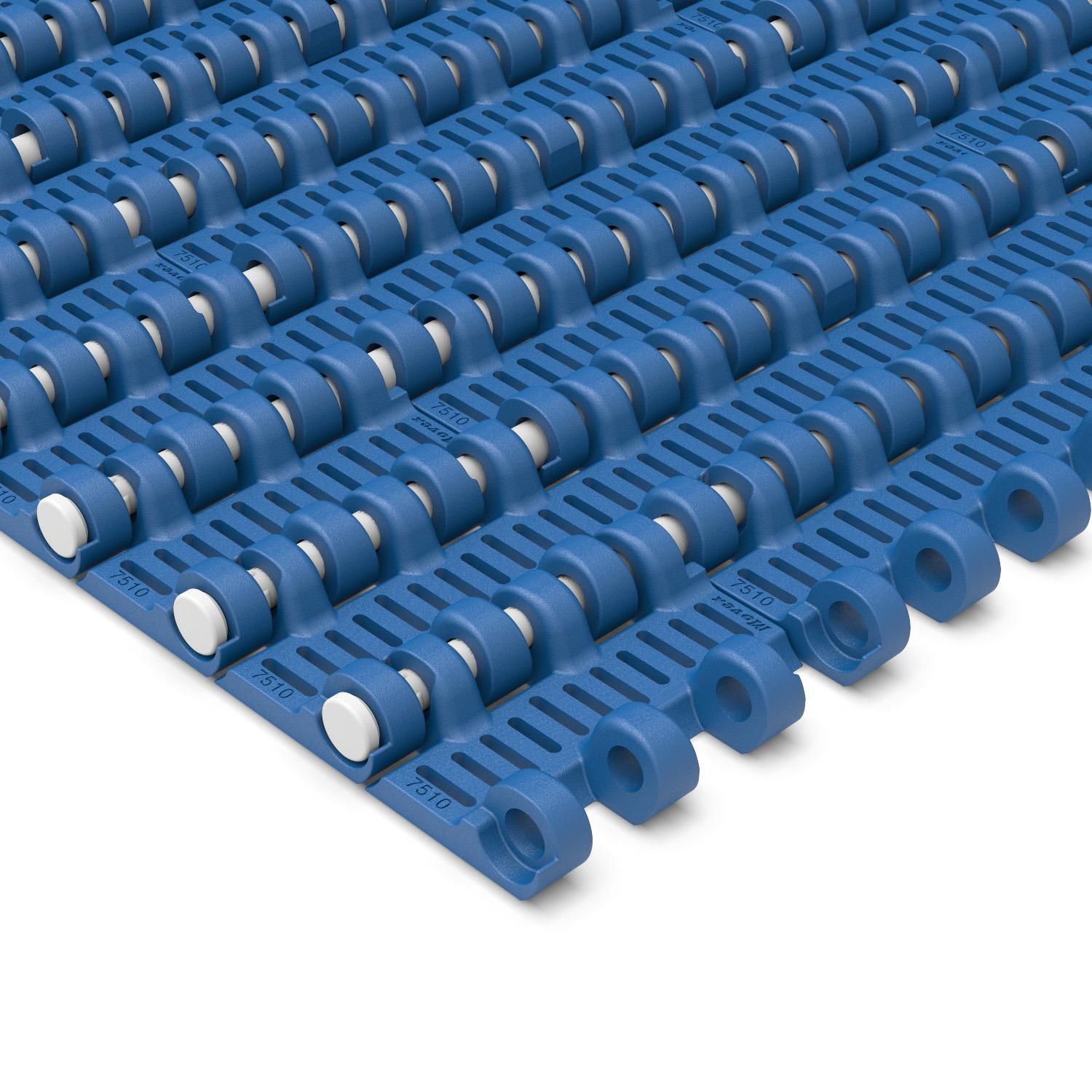

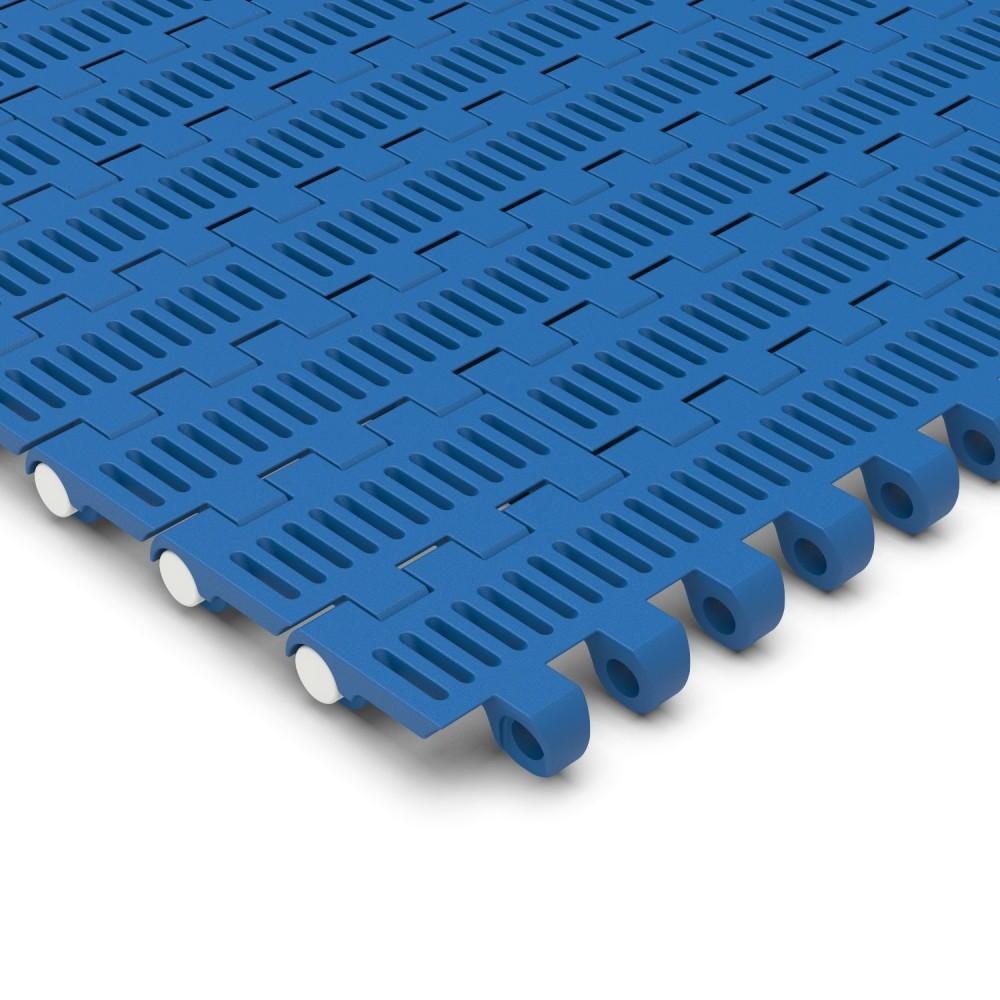

7510 Mesh Top

Modular Belts

Belts wider than standard are available with 50 mm increments. Non-standard widths are available with 16.65 mm increments. The nominal tensile strength and the nominal width tolerance are valid for a temperature of 23°C (73 °F). The actual belt width may differ from the nominal value depending on the material used, with the following percentage tolerances: For PE belts, the variation ranges from -0.5% to +1%. For POM belts, the variation ranges from 0% to -0.5%. For PP belts, the variation ranges from -0.5% to +0.5%. Non-Standard belt widths are incremented by 16.65 mm (0.66”). The minimum width is 50 mm (2”). Non-bricklayed belts are available in widths of 50 mm (2”), 100 mm (4”) and 200 mm (8”).
