    Home / Products / Chains / Plastic chains / 820 Flat Top
    ,820 Flat Top
    ,820 Flat Top

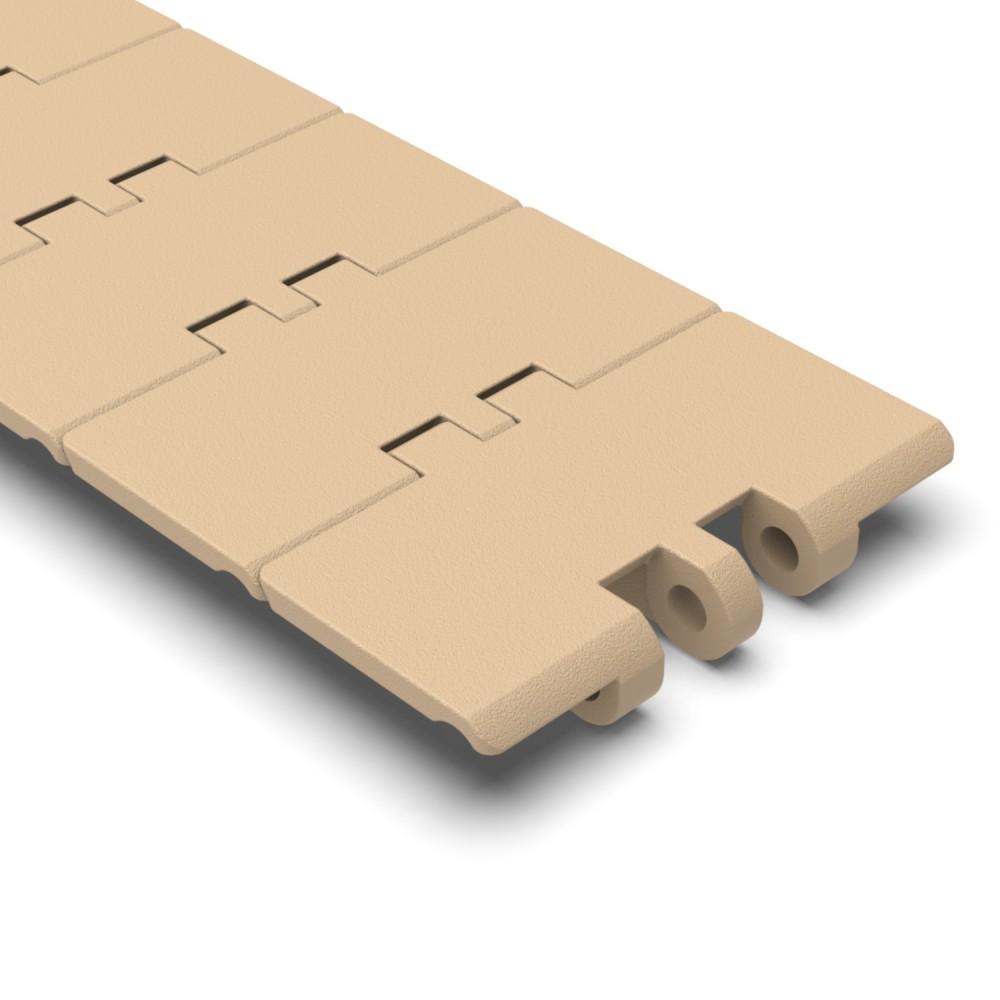

    820 Flat Top

    Chains > Plastic chains

    Although the 820 series chain is now a commodity product, Movex created an optimized version in which the gap between the links is 45% lower and the contact surface is increased up to a maximum of 15%: these two features help to improve the product stability. The new design, already available, will replace the current one and all part numbers will remain unchanged, since it is completely interchangeable and connectable with the current one.

    Product configuration

    Series:820-828-831-878-879-880-888820-828-831-878-879-880-888
    Pitch:38.1 mm1.500 in
    Thickness:4 mm0.157 in
    Surface Type:FT - Flat TopFT - Flat Top
    Functionality:StraightStraight
    Unit of measure:Meter
