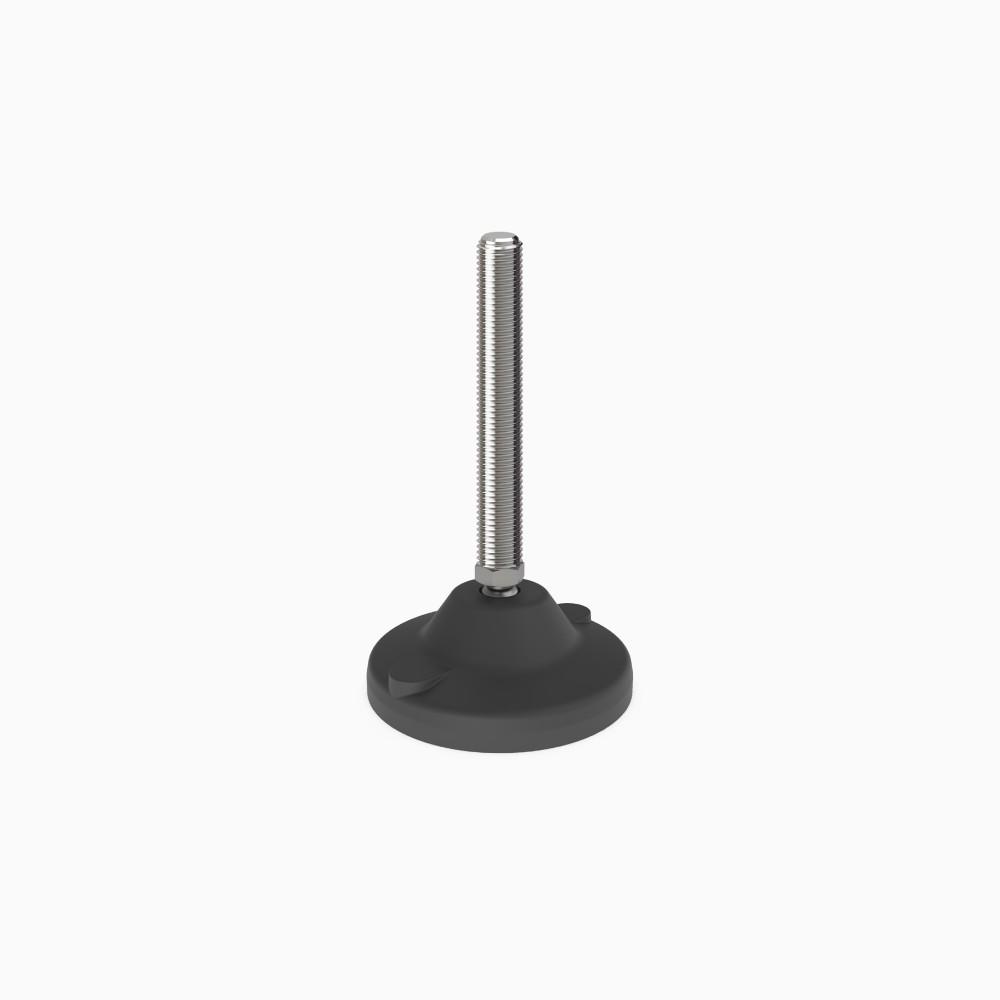

Articulated Ø123 2 Fixing point
Leveling feet > Articulated
The ARTICULATED series, with plastic baseplate and fully threaded spindle is the standard choice for the industrial environments.
The spindle is made with hexagonal key wrench and available in two different materials, zinc plated steel or stainless steel and the baseplate is available with or without rubber pad.
Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 500 N.
| Design: | StandardStandard |
|---|---|
| Base material: | PlasticPlastic |
| Diameter: | 123 mm4.843 in |
| Max Load: | 19999÷49999 N4496÷11240 lbs |
| Fixing point: | 22 |
| Anti-slip: | NoNo |
| Unit of measure: | Ea |
| Box: | - |
