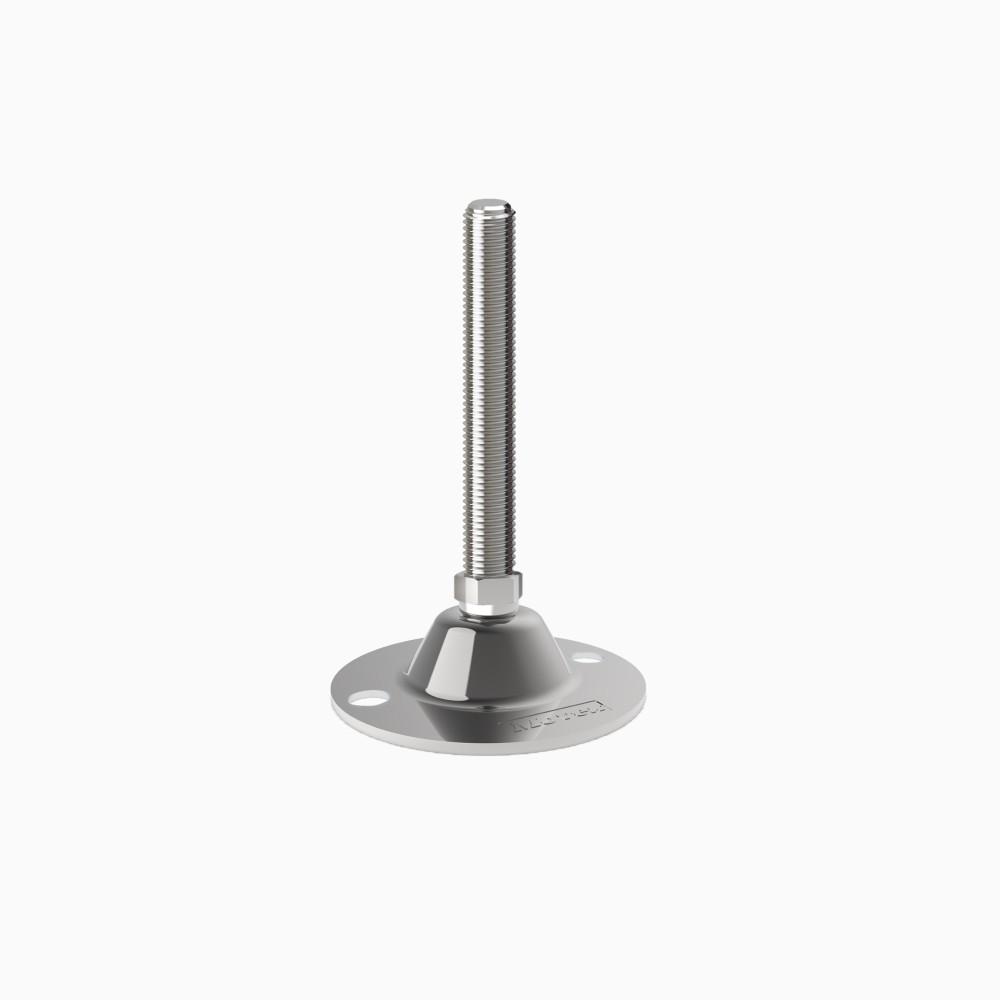

Steel Ø123 2 Fixing point
Leveling feet > Steel
The STEEL series, with stamped baseplate and fully threaded spindle is the standard choice for the industrial environments, where a low level of hygiene and low load are required.
Ideal for heavy and dirthy production environments, the STEEL series can be provided without fixing holes, with 2 fixing holes or with 4 fixing holes.
The spindle is made with hexagonal key wrench and is available in two different materials, zinc plated steel or stainless steel.
Maximum compressive strength (static load) 10.000 N, maximum tensile strength (static load) 4.000 N.
| Design: | StandardStandard |
|---|---|
| Base material: | MetalMetal |
| Diameter: | 123 mm4.843 in |
| Max Load: | 10000÷19999 N2248÷4496 lbs |
| Fixing point: | 22 |
| Anti-slip: | NoNo |
| Unit of measure: | Ea |
| Box: | - |
