P400R Ø100 2 Fixing point Anti-Slip

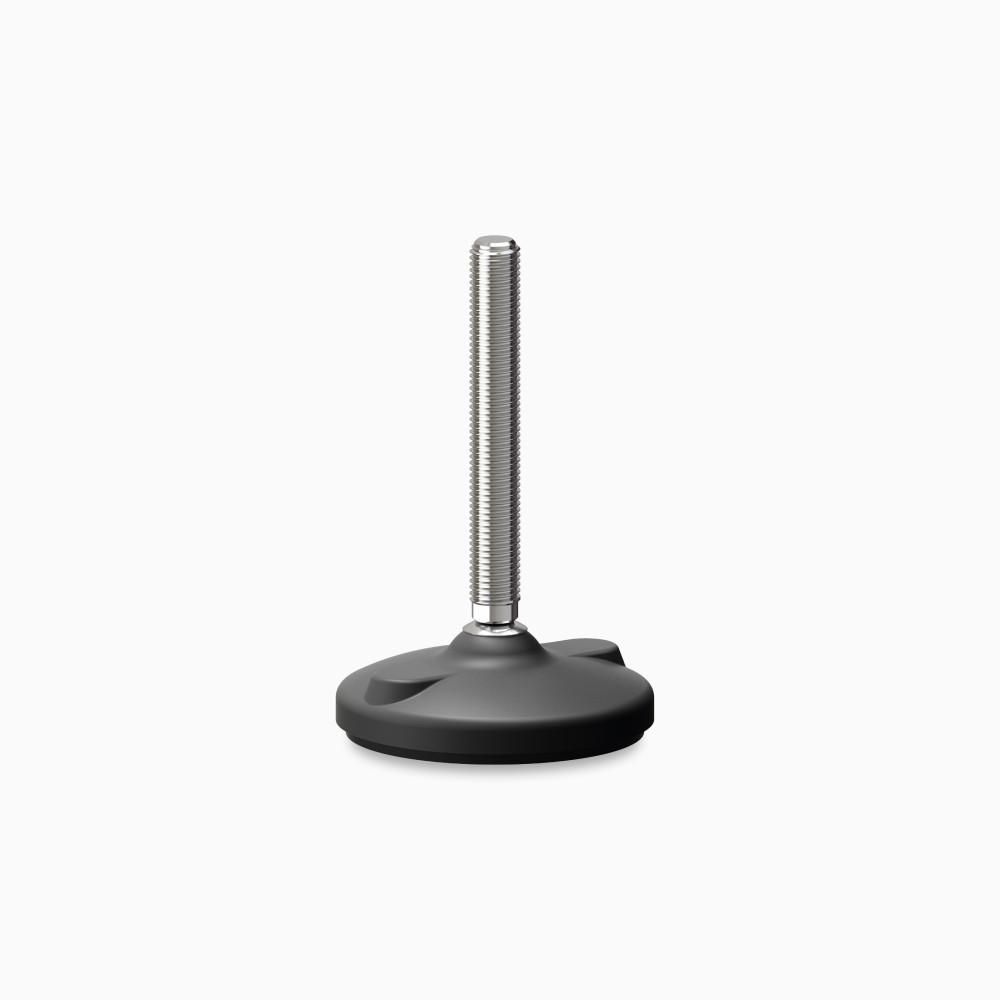

Leveling feet > P400R
The P400R series, with plastic baseplate, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a medium-high level of hygiene is required.
The compact baseplate and the smooth edges guarantee an excellent cleanability, even in critical conditions and the stainless steel washer ensures complete closure between the spindle and the baseplate.
Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 500 N.
Product configuration
| Product code | L | Key slot | Spindle material | Thread size | H tot | Design | Key 1 |
|---|---|---|---|---|---|---|---|
| P91302RY | 111 mm4.370 in | StandardStandard | Stainless steelStainless steel | 0,625"-110,625"-11 | 153 mm6.024 in | StandardStandard | 13 mm0.512 in |
| P91303RY | 161 mm6.339 in | StandardStandard | Stainless steelStainless steel | 0,625"-110,625"-11 | 203 mm7.992 in | StandardStandard | 13 mm0.512 in |
| P91402RY | 134 mm5.276 in | StandardStandard | Stainless steelStainless steel | 0,750"-100,750"-10 | 178 mm7.008 in | StandardStandard | 16 mm0.630 in |
| P91403RY | 184 mm7.244 in | StandardStandard | Stainless steelStainless steel | 0,750"-100,750"-10 | 228 mm8.976 in | StandardStandard | 16 mm0.630 in |
| P91402HRY | 134 mm5.276 in | HexagonalHexagonal | Stainless steelStainless steel | 0,750"-100,750"-10 | 178 mm7.008 in | StandardStandard | 20 mm0.787 in |
| P91403HRY | 184 mm7.244 in | HexagonalHexagonal | Stainless steelStainless steel | 0,750"-100,750"-10 | 228 mm8.976 in | StandardStandard | 20 mm0.787 in |
| P91502RY | 133 mm5.236 in | StandardStandard | Stainless steelStainless steel | 1"-81"-8 | 178 mm7.008 in | StandardStandard | 19 mm0.748 in |
| P91503RY | 183 mm7.205 in | StandardStandard | Stainless steelStainless steel | 1"-81"-8 | 228 mm8.976 in | StandardStandard | 19 mm0.748 in |
| P91301ZRY | 61 mm2.402 in | StandardStandard | Zinc Plated SteelZinc Plated Steel | 0,625"-110,625"-11 | 103 mm4.055 in | StandardStandard | 13 mm0.512 in |
| P91302ZRY | 111 mm4.370 in | StandardStandard | Zinc Plated SteelZinc Plated Steel | 0,625"-110,625"-11 | 153 mm6.024 in | StandardStandard | 13 mm0.512 in |
| P91303ZRY | 161 mm6.339 in | StandardStandard | Zinc Plated SteelZinc Plated Steel | 0,625"-110,625"-11 | 203 mm7.992 in | StandardStandard | 13 mm0.512 in |
| P91402ZRY | 134 mm5.276 in | StandardStandard | Zinc Plated SteelZinc Plated Steel | 0,750"-100,750"-10 | 178 mm7.008 in | StandardStandard | 16 mm0.630 in |
| P91403ZRY | 184 mm7.244 in | StandardStandard | Zinc Plated SteelZinc Plated Steel | 0,750"-100,750"-10 | 228 mm8.976 in | StandardStandard | 16 mm0.630 in |
| P91402ZHRY | 134 mm5.276 in | HexagonalHexagonal | Zinc Plated SteelZinc Plated Steel | 0,750"-100,750"-10 | 178 mm7.008 in | StandardStandard | 20 mm0.787 in |
| P91403ZHRY | 184 mm7.244 in | HexagonalHexagonal | Zinc Plated SteelZinc Plated Steel | 0,750"-100,750"-10 | 228 mm8.976 in | StandardStandard | 20 mm0.787 in |
| P91502ZRY | 133 mm5.236 in | StandardStandard | Zinc Plated SteelZinc Plated Steel | 1"-81"-8 | 178 mm7.008 in | StandardStandard | 19 mm0.748 in |
| P91503ZRY | 183 mm7.205 in | StandardStandard | Zinc Plated SteelZinc Plated Steel | 1"-81"-8 | 228 mm8.976 in | StandardStandard | 19 mm0.748 in |
| P91301RY | 61 mm2.402 in | StandardStandard | Stainless steelStainless steel | 0,625"-110,625"-11 | 103 mm4.055 in | StandardStandard | 13 mm0.512 in |
| Design: | StandardStandard |
|---|---|
| Base material: | PlasticPlastic |
| Diameter: | 100 mm3.937 in |
| Fixing point: | 22 |
| Anti-slip: | YesYes |
| Unit of measure: | Ea |
| Box: | - |
