UCFL-H Locking collar Watertight Solid
Bearings supports

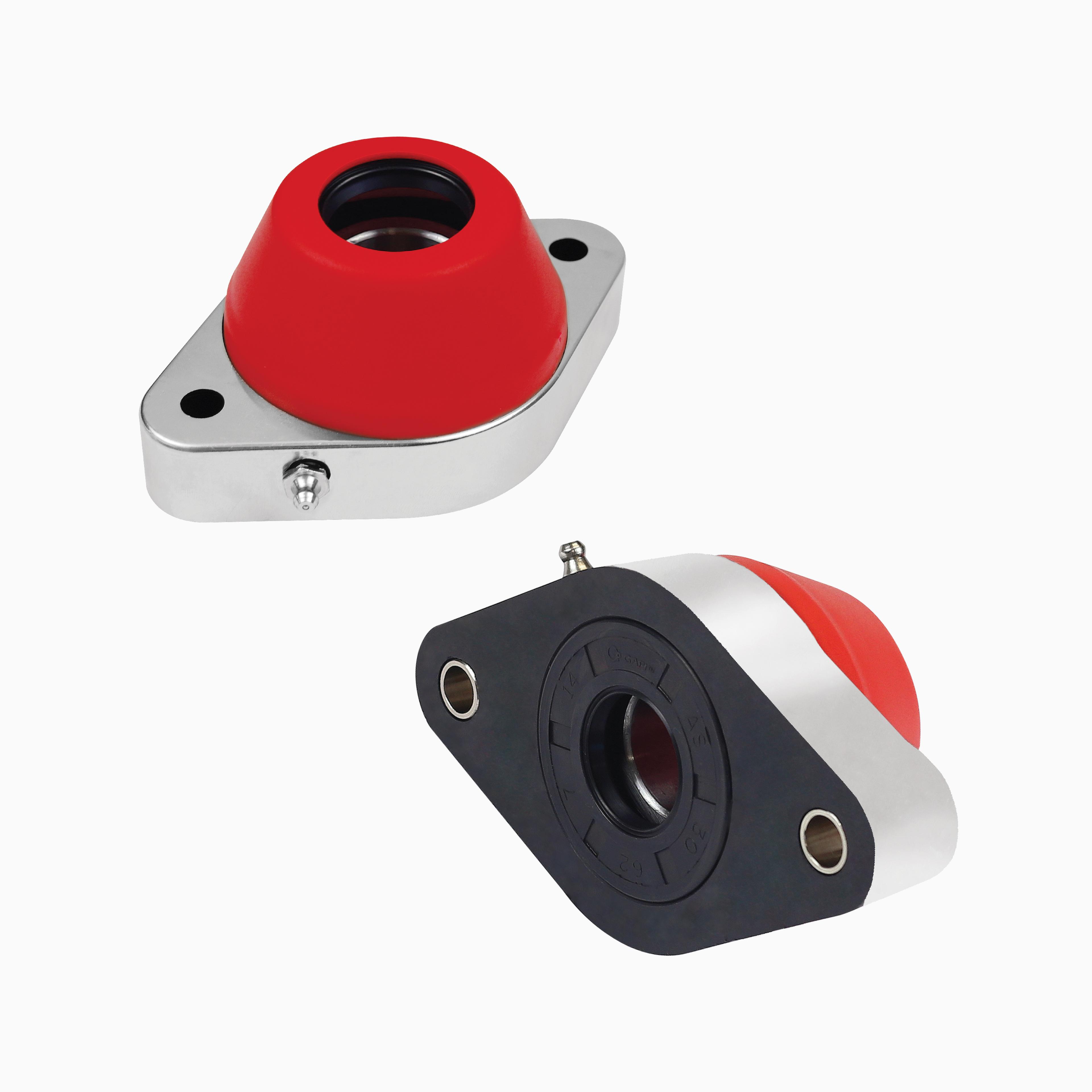

The UCFL-H watertight bearings - solid version are made in reinforced polypropylene and stainless steel cover with high mechanical strength and excellent resistance against corrosive chemicals such as water, oils, petrol and liquids containing alcohol.
The bearing has a watertight PP cover for sealing, preventing dirt and bacteria from penetrating and increasing the life of the insert.
Bearings are made in chrome steel, with 2,5° adjustment.
They can be used at temperature between 0°C and +80°C.
Product configuration
| Product code | A | B | Operating Temperature °C | D | E | C | F | G | H | Bearing material | Watertight (Safety cap) | Shaft diameter | I (holes distance) | Shaft adjustment | Housing | Bearing | Spacers | Grease nipple | Cap | Seal |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P82603H | 94.7 mm3.728 in | 149.7 mm5.894 in | 0÷80 °C-32÷176 °F | 48 mm1.890 in | 19.5 mm0.768 in | 11 mm0.433 in | 26 mm1.024 in | 43 mm1.693 in | 66.5 mm2.618 in | Chrome steelChrome steel | Yes, closed capYes, closed cap | 35 mm35 mm | 117 mm4.606 in | 2.5°2.5° | Housing in reinforced polypropylene & cover in SSHousing in reinforced polypropylene & cover in SS | Chrome steel ball bearing (pre-lubricated)Chrome steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacersNickel-plated brass mounting hole spacers | Nickel plated steel grease nipple M6 conical Nickel plated steel grease nipple M6 conical | Polypropylene close cap with O-ring sealPolypropylene close cap with O-ring seal | NBR bottom sealNBR bottom seal |
| P82604H | 94.7 mm3.728 in | 149.7 mm5.894 in | 0÷80 °C-32÷176 °F | 53 mm2.087 in | 19 mm0.748 in | 11 mm0.433 in | 26.85 mm1.057 in | 44 mm1.732 in | 67 mm2.638 in | Chrome steelChrome steel | Yes, closed capYes, closed cap | 40 mm40 mm | 117 mm4.606 in | 2.5°2.5° | Housing in reinforced polypropylene & cover in SSHousing in reinforced polypropylene & cover in SS | Chrome steel ball bearing (pre-lubricated)Chrome steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacersNickel-plated brass mounting hole spacers | Nickel plated steel grease nipple M6 conical Nickel plated steel grease nipple M6 conical | Polypropylene close cap with O-ring sealPolypropylene close cap with O-ring seal | NBR bottom sealNBR bottom seal |
| P82712H | 86.7 mm3.413 in | 149.7 mm5.894 in | 0÷80 °C-32÷176 °F | 40.3 mm1.587 in | 20 mm0.787 in | 11 mm0.433 in | 26.85 mm1.057 in | 42 mm1.654 in | 61.5 mm2.421 in | Chrome steelChrome steel | Yes, open capYes, open cap | 30 mm30 mm | 117 mm4.606 in | 2.5°2.5° | Housing in reinforced polypropylene & cover in SSHousing in reinforced polypropylene & cover in SS | Chrome steel ball bearing (pre-lubricated)Chrome steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacersNickel-plated brass mounting hole spacers | Nickel plated steel grease nipple M6 conical Nickel plated steel grease nipple M6 conical | Polypropylene open cap with O-ring seal & NBR top sealPolypropylene open cap with O-ring seal & NBR top seal | NBR bottom sealNBR bottom seal |
| P82703H | 94.7 mm3.728 in | 149.7 mm5.894 in | 0÷80 °C-32÷176 °F | 48 mm1.890 in | 19.5 mm0.768 in | 11 mm0.433 in | 26 mm1.024 in | 43 mm1.693 in | 66.5 mm2.618 in | Chrome steelChrome steel | Yes, open capYes, open cap | 35 mm35 mm | 117 mm4.606 in | 2.5°2.5° | Housing in reinforced polypropylene & cover in SSHousing in reinforced polypropylene & cover in SS | Chrome steel ball bearing (pre-lubricated)Chrome steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacersNickel-plated brass mounting hole spacers | Nickel plated steel grease nipple M6 conical Nickel plated steel grease nipple M6 conical | Polypropylene open cap with O-ring seal & NBR top sealPolypropylene open cap with O-ring seal & NBR top seal | NBR bottom sealNBR bottom seal |
| P82704H | 94.7 mm3.728 in | 149.7 mm5.894 in | 0÷80 °C-32÷176 °F | 53 mm2.087 in | 19 mm0.748 in | 11 mm0.433 in | 26.85 mm1.057 in | 44 mm1.732 in | 67 mm2.638 in | Chrome steelChrome steel | Yes, open capYes, open cap | 40 mm40 mm | 117 mm4.606 in | 2.5°2.5° | Housing in reinforced polypropylene & cover in SSHousing in reinforced polypropylene & cover in SS | Chrome steel ball bearing (pre-lubricated)Chrome steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacersNickel-plated brass mounting hole spacers | Nickel plated steel grease nipple M6 conical Nickel plated steel grease nipple M6 conical | Polypropylene open cap with O-ring seal & NBR top sealPolypropylene open cap with O-ring seal & NBR top seal | NBR bottom sealNBR bottom seal |
| P82612H | 86.7 mm3.413 in | 149.7 mm5.894 in | 0÷80 °C-32÷176 °F | 40.3 mm1.587 in | 20 mm0.787 in | 11 mm0.433 in | 26.85 mm1.057 in | 42 mm1.654 in | 61.5 mm2.421 in | Chrome steelChrome steel | Yes, closed capYes, closed cap | 30 mm30 mm | 117 mm4.606 in | 2.5°2.5° | Housing in reinforced polypropylene & cover in SSHousing in reinforced polypropylene & cover in SS | Chrome steel ball bearing (pre-lubricated)Chrome steel ball bearing (pre-lubricated) | Nickel-plated brass mounting hole spacersNickel-plated brass mounting hole spacers | Nickel plated steel grease nipple M6 conical Nickel plated steel grease nipple M6 conical | Polypropylene close cap with O-ring sealPolypropylene close cap with O-ring seal | NBR bottom sealNBR bottom seal |
| Series: | UCFL-HUCFL-H |
|---|---|
| Type: | Watertight (cap)Watertight (cap) |
| Fixation: | 2-holes2-holes |
| Material: | PlasticPlastic |
| Version: | SolidSolid |
| Fixing method: | Locking collar (eccentric ring)Locking collar (eccentric ring) |
| Unit of measure: | Ea |
| Box: | - |
