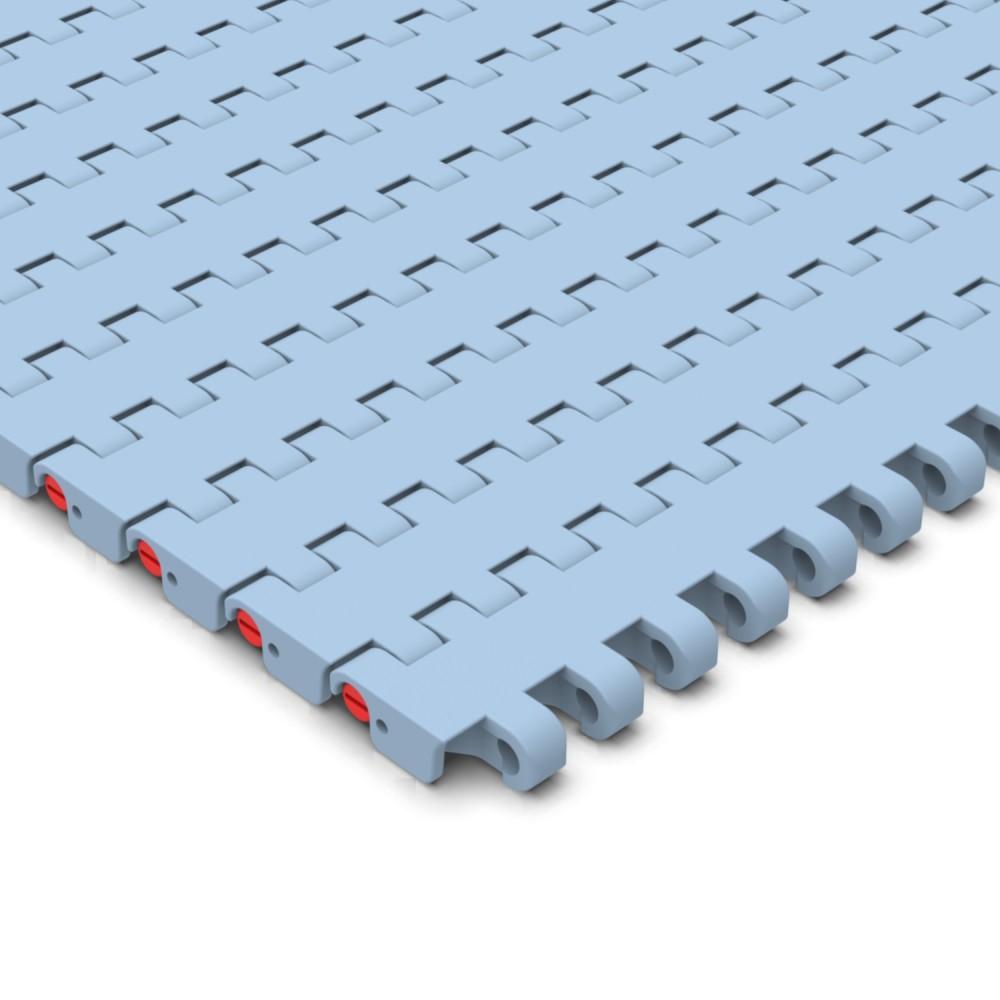

590 Flat Top
Modular Belts
*Belts wider than standard are available with 3 inch increments.
The nominal tensile strength and the nominal width tolerance are valid for a temperature of 23°C (73 °F).
The actual width of the belt typically falls below the nominal value by 0.1% to 0.3%.
For POM belts up to 750 mm (30”) in width, the shrinkage ranges from -4 mm to 0 mm, and for those wider, from -0.5% to 0%.
For PP belts up to 750 mm (30”) in width, the decrease is between -3 mm and 0 mm, with the reduction for wider belts ranging from -0.25% to 0.25%.
Non-Standard belt widths are incremented by 12.7 mm (0.5”). The minimum width is 76.2 (3.0”).
Product configuration
Series: | 590590 |
---|---|
Pitch: | 19.05 mm0.750 in |
Thickness: | 8.7 mm0.343 in |
Increments: | 3" - 76,2 mm3" - 76,2 mm |
Surface Type: | FT - Flat TopFT - Flat Top |
Functionality: | StraightStraight |
Unit of measure: | Meter (Part 5301) |
Unit of measure: | Ea (Part F590) |
