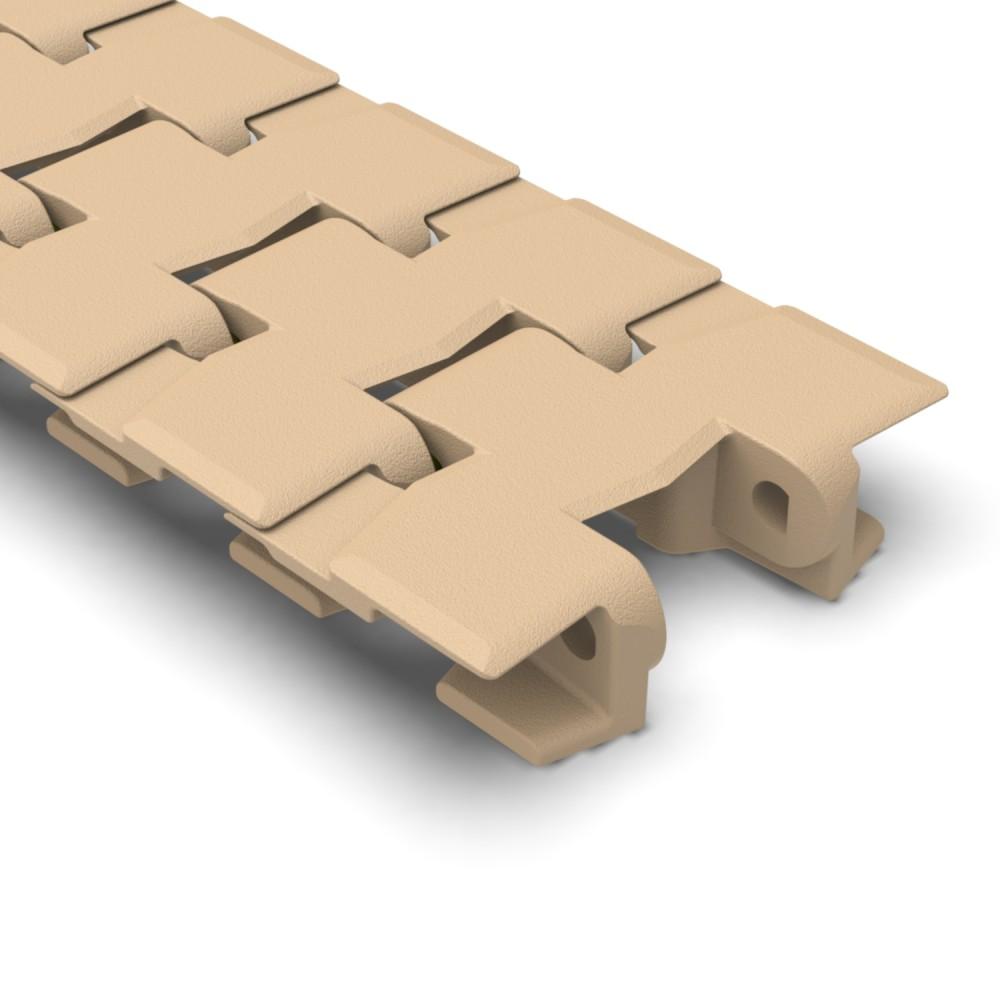

888 TAB Flat Top
Chains > Plastic chains
Product configuration
| Product code | Width | Material | Part | Back flex radius | Sideflexing radius min | Mass | Pin material | Box | Max working load |
|---|---|---|---|---|---|---|---|---|---|

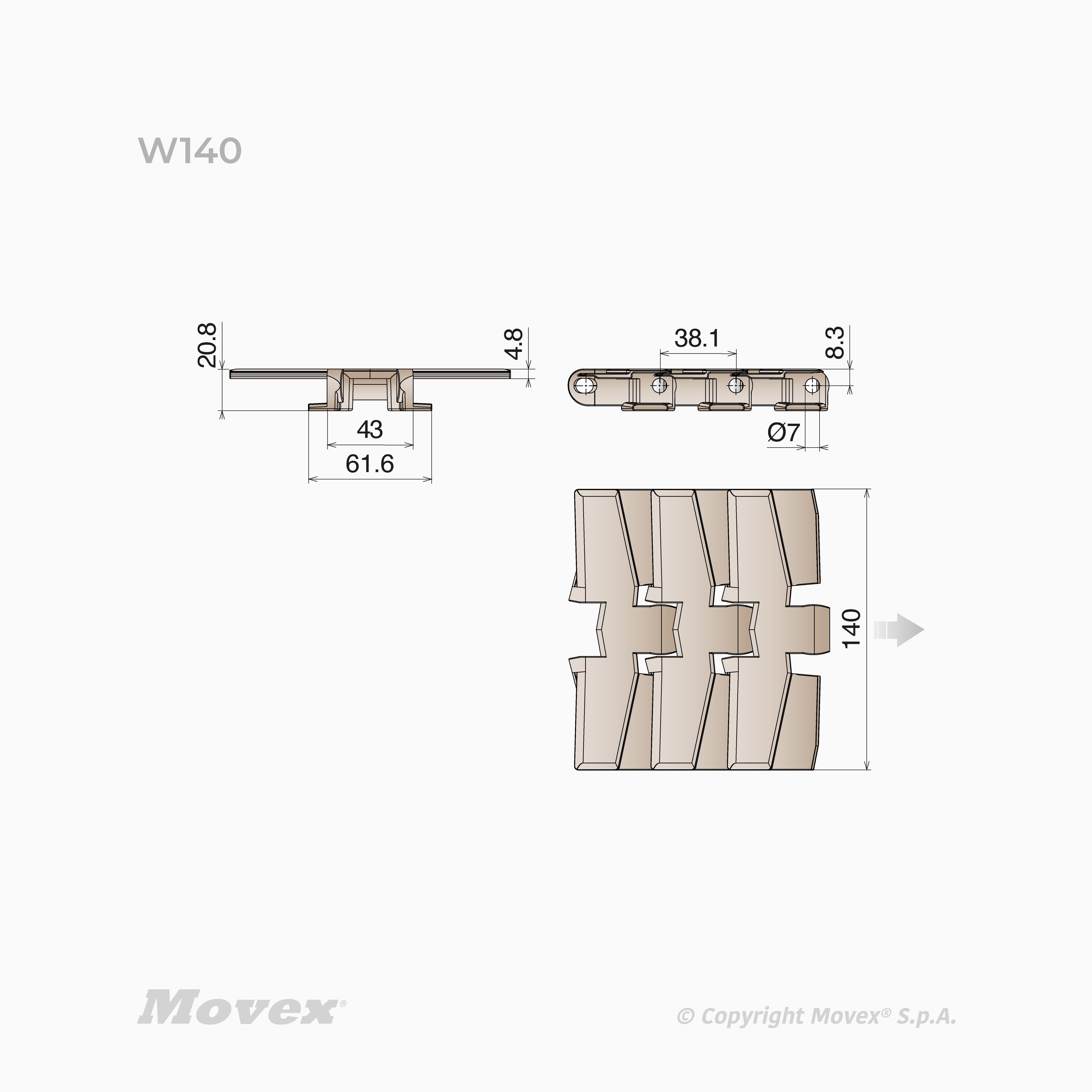

| P11700120 | 140 mm140 mm | LF - Low friction acetal (01)LF - Low friction acetal (01) | P1170P1170 | 150 mm5.906 in | 500 mm19.685 in | 1.32 kg/m0.3 lbs/ft | Stainless steelStainless steel | 10 ft - 3,048 m10 ft - 3,048 m | 2200 N2200 lbs |

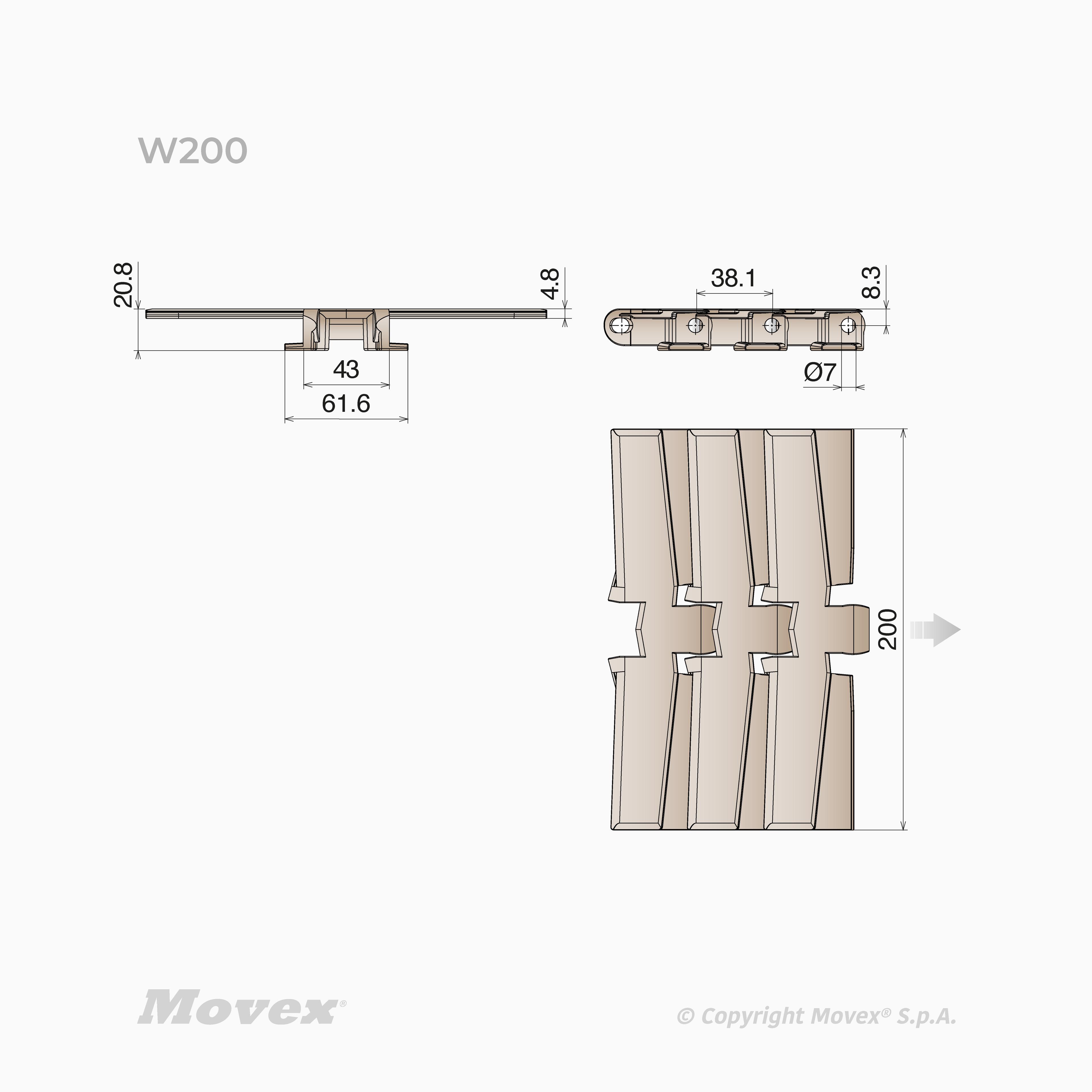

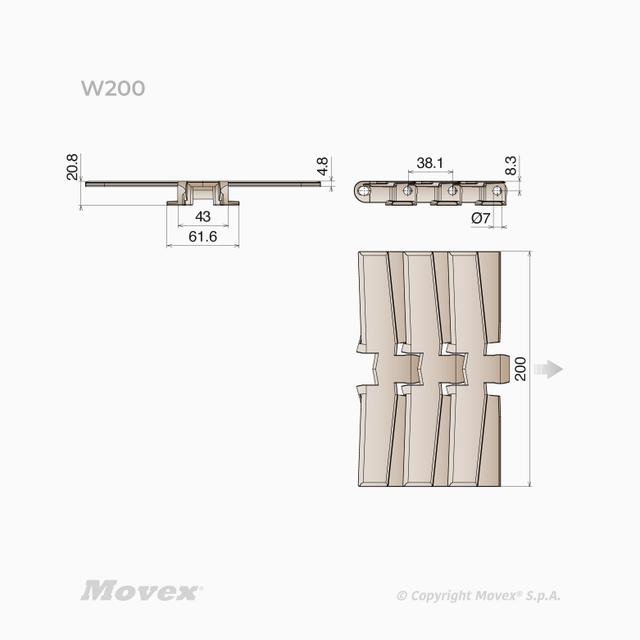

| P11700121 | 200,0 mm200,0 mm | LF - Low friction acetal (01)LF - Low friction acetal (01) | P1170P1170 | 150 mm5.906 in | 500 mm19.685 in | 1.62 kg/m0.3 lbs/ft | Stainless steelStainless steel | 10 ft - 3,048 m10 ft - 3,048 m | 2200 N2200 lbs |

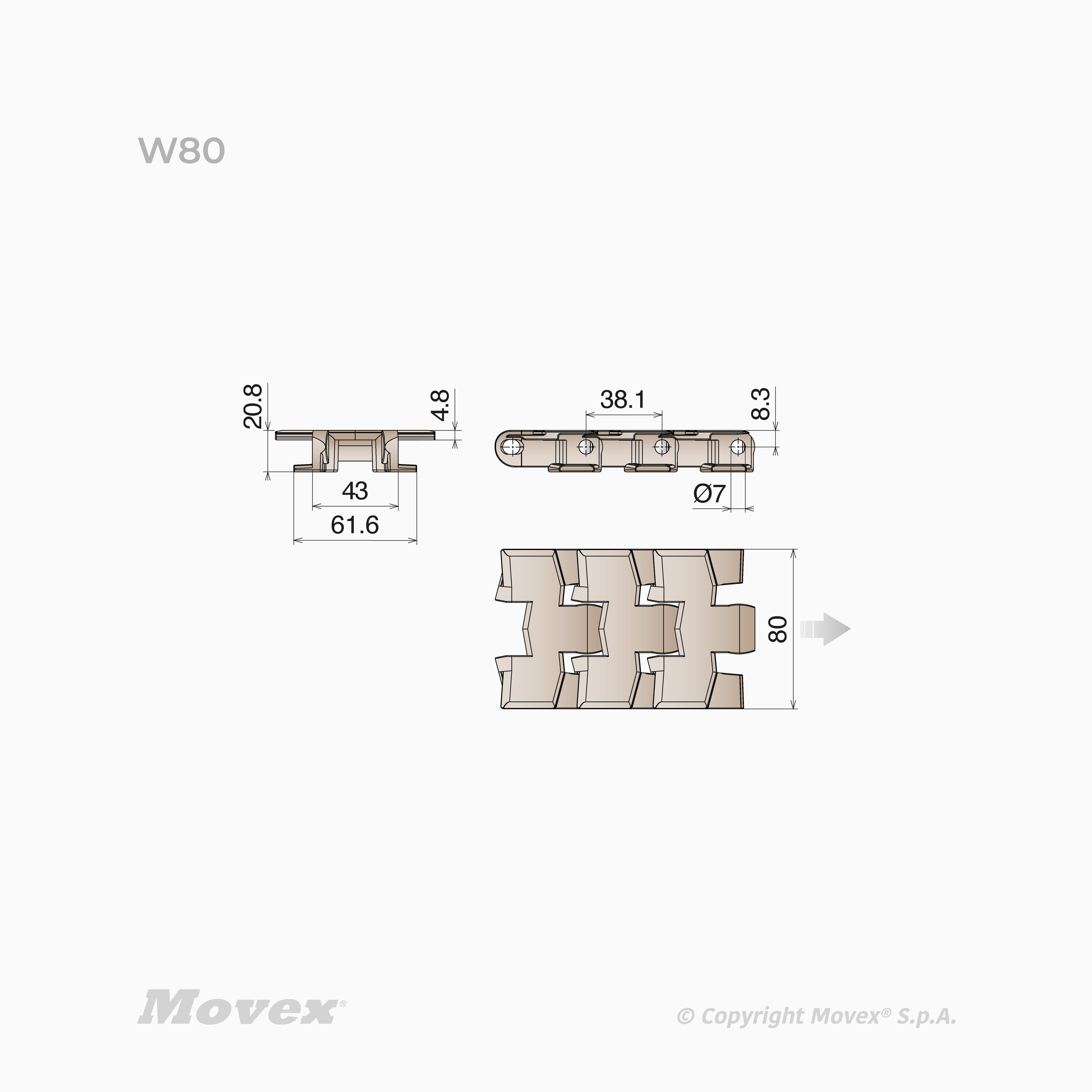

| P11700119 | 80,0 mm80,0 mm | LF - Low friction acetal (01)LF - Low friction acetal (01) | P1170P1170 | 150 mm5.906 in | 200 mm7.874 in | 1.05 kg/m0.2 lbs/ft | Stainless steelStainless steel | 10 ft - 3,048 m10 ft - 3,048 m | 2200 N2200 lbs |
| Series: | 820-828-831-878-879-880-888820-828-831-878-879-880-888 |
|---|---|
| Pitch: | 38.1 mm1.500 in |
| Thickness: | 4.8 mm0.189 in |
| Surface Type: | FT - Flat TopFT - Flat Top |
| Functionality: | Side Flex TABSide Flex TAB |
| Unit of measure: | Meter |
