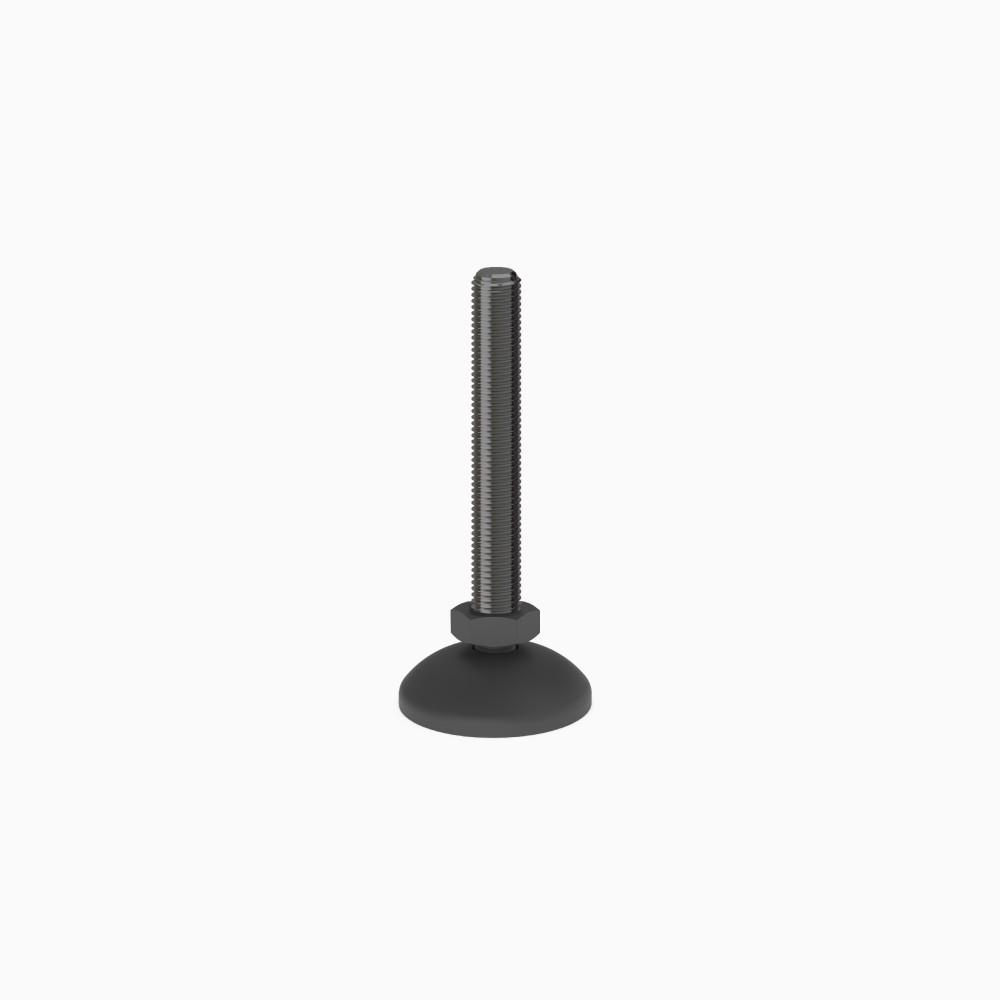

Basic Ø60Polyamide spindle
Leveling feet > Basic
The BASIC series, with plastic baseplate and fully threaded spindle is the standard choice for the industrial environments.
The spindle can be made with flat or hexagonal key wrench and is available in two different materials, zinc plated steel or stainless steel.
Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 500 N.
Product configuration
| Design: | Polyamide spindlePolyamide spindle |
|---|---|
| Base material: | PlasticPlastic |
| Diameter: | 60 mm2.362 in |
| Max Load: | 10000÷19999 N2248÷4496 lbs |
| Fixing point: | 00 |
| Anti-slip: | NoNo |
| Unit of measure: | Ea |
| Box: | - |
