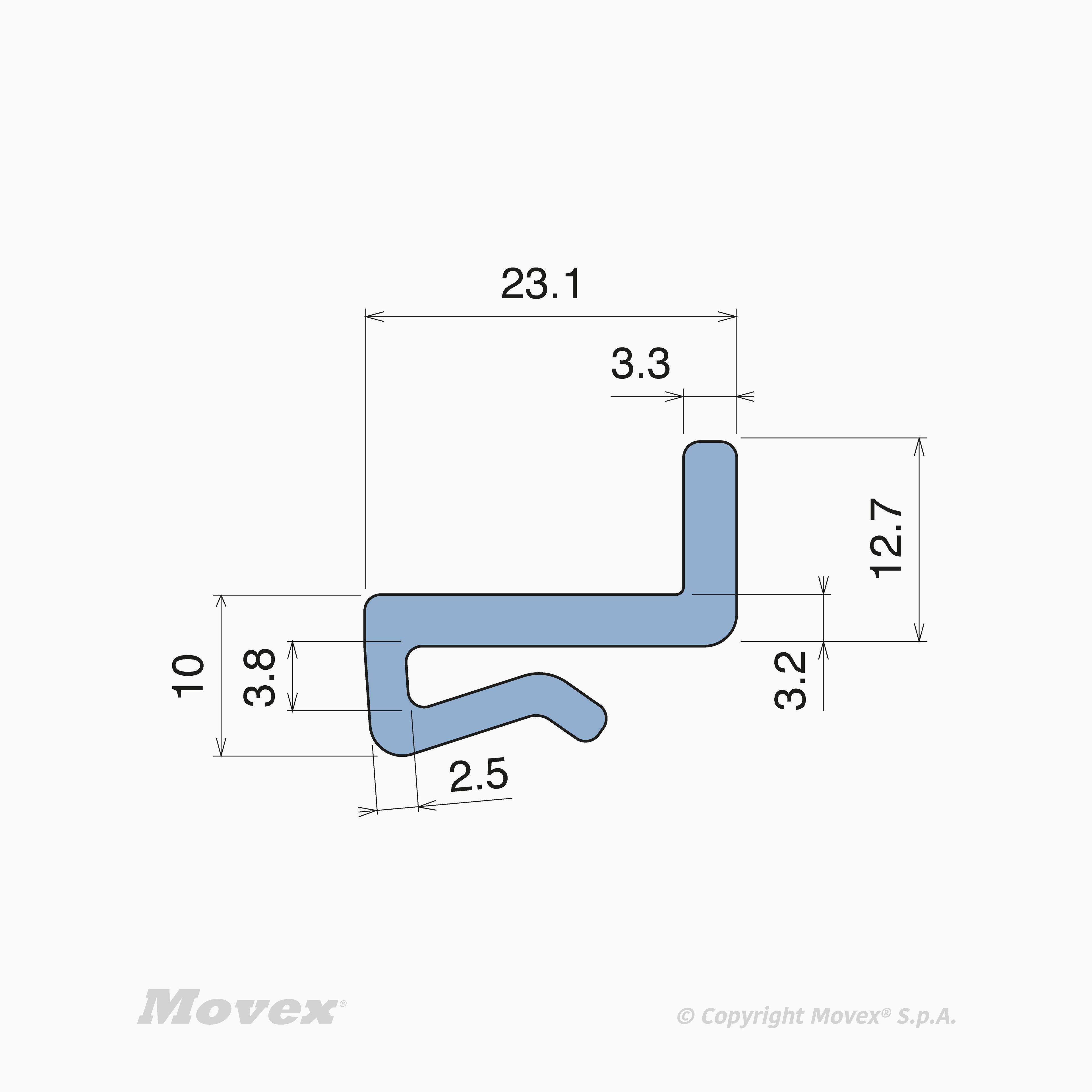

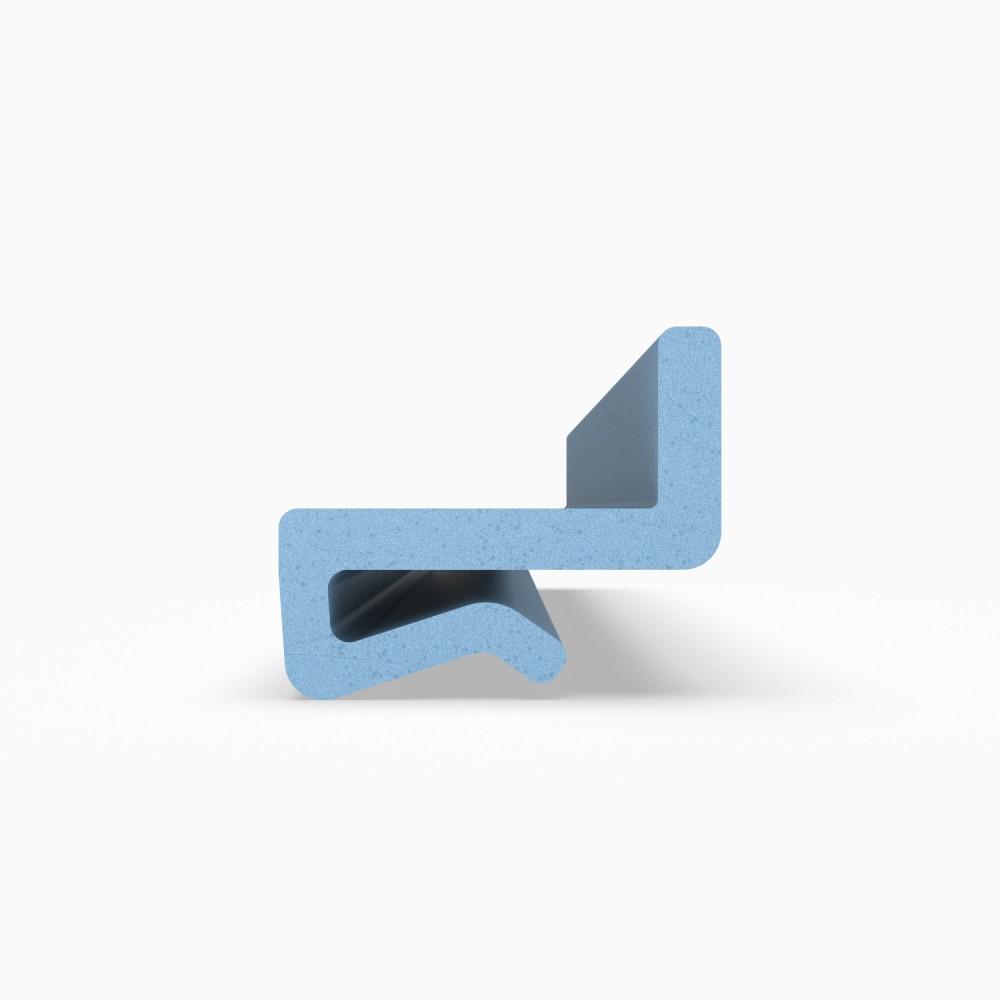

J-Profile Part 1020
Extruded profiles
Movex® provides a new generation of high-performance profiles developed and produced with the most up to date technology.
Experienced engineers work around the clock on more than 50 extrusion machines, perfecting almost 2.000 high-quality products of different types and sizes.
Movex ® profiles are produced from top-quality UHMW-PE, with the possibility of enhanced performance with the use of our super-performing materials BluLub ®, Titanium White ® and AS.
Standard 3 m (10 ft) or 6 m (20 ft) profiles are typically shipped by common carrier. Selected items can be coiled into cartons for more convenient shipping.
Product configuration
| Product code | Part | Material & color | Supply length | Operating Temperature °C |
|---|---|---|---|---|
| P102000B | P1020P1020 | BluLubBluLub | 6 m / 20 ft bars6 m / 20 ft bars | -40÷80 °C-104÷176 °F |
| P102003C | P1020P1020 | Ti-WhiteTi-White | 3 m / 10 ft bars3 m / 10 ft bars | -40÷80 °C-104÷176 °F |
| P102003 | P1020P1020 | Ti-WhiteTi-White | 6 m / 20 ft bars6 m / 20 ft bars | -40÷80 °C-104÷176 °F |
| P102001C | P1020P1020 | UHMW-PE BlackUHMW-PE Black | 3 m / 10 ft bars3 m / 10 ft bars | -40÷80 °C-104÷176 °F |
| P102001 | P1020P1020 | UHMW-PE BlackUHMW-PE Black | 6 m / 20 ft bars6 m / 20 ft bars | -40÷80 °C-104÷176 °F |
| P102005C | P1020P1020 | UHMW-PE BlueUHMW-PE Blue | 3 m / 10 ft bars3 m / 10 ft bars | -40÷80 °C-104÷176 °F |
| P102005 | P1020P1020 | UHMW-PE BlueUHMW-PE Blue | 6 m / 20 ft bars6 m / 20 ft bars | -40÷80 °C-104÷176 °F |
| P102002C | P1020P1020 | UHMW-PE GreenUHMW-PE Green | 3 m / 10 ft bars3 m / 10 ft bars | -40÷80 °C-104÷176 °F |
| P102002 | P1020P1020 | UHMW-PE GreenUHMW-PE Green | 6 m / 20 ft bars6 m / 20 ft bars | -40÷80 °C-104÷176 °F |
| P102000BC | P1020P1020 | BluLubBluLub | 3 m / 10 ft bars3 m / 10 ft bars | -40÷80 °C-104÷176 °F |
| Series: | J-ProfileJ-Profile |
|---|---|
| Material: | Plastic profilePlastic profile |
| Unit of measure: | Meter |
| Box: | - |
