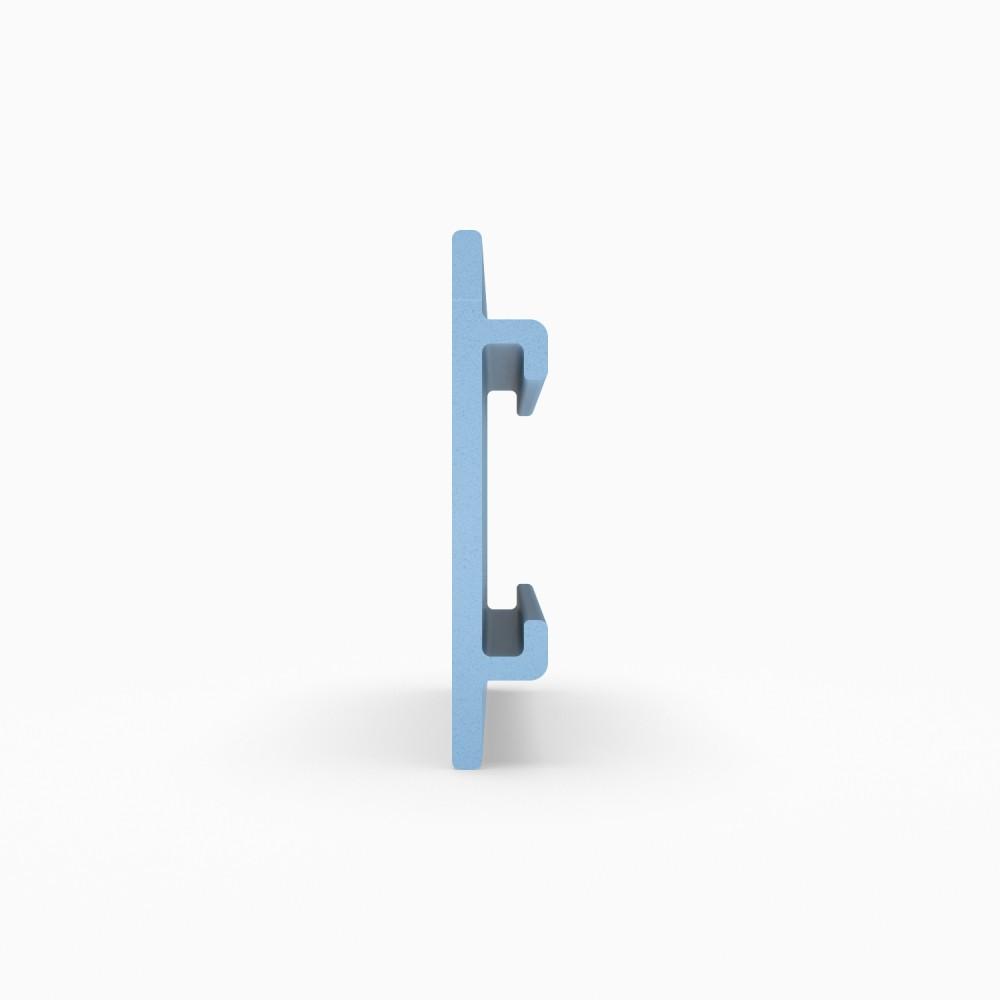

Side Guide Rail Part 158
Extruded profiles
The Movex side guides, extruded with RAM extrusion technology, are the perfect choice to improve the conveyor performances.
Thanks to a new patented and innovative production process, we have further enhanced our range of profiles, improving performance and reducing the dust creation.
These profiles are available with height from 50 to 170 mm, and with many different shapes and types (with clamping system or label saver), and can also be extruded with our unique materials BluLub® and Titanium White®, providing unparalleled performance and reliability.
Standard 3 m (10 ft) or 6 m (20 ft) profiles are typically shipped by common carrier. Selected items can be coiled into cartons for more convenient shipping.
Product configuration

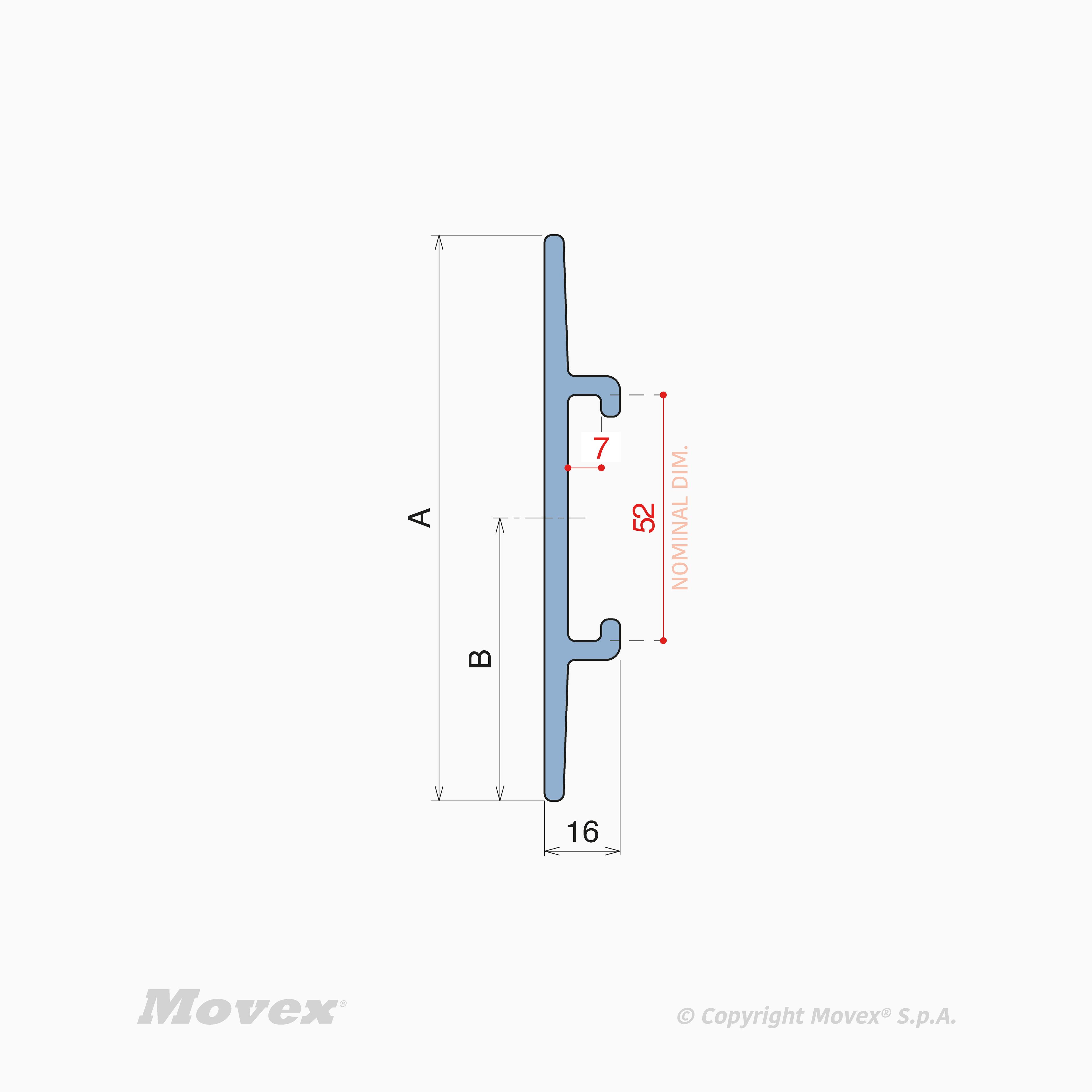

| Product code | Part | Material & color | Supply length | A | B | Operating Temperature °C |
|---|---|---|---|---|---|---|
| P15802BC | P158P158 | BluLubBluLub | 3 m / 10 ft bars3 m / 10 ft bars | 100 mm3.937 in | 50 mm1.969 in | -40÷80 °C-104÷176 °F |
| P15803BC | P158P158 | BluLubBluLub | 3 m / 10 ft bars3 m / 10 ft bars | 120 mm4.724 in | 60 mm2.362 in | -40÷80 °C-104÷176 °F |
| P15804BC | P158P158 | BluLubBluLub | 3 m / 10 ft bars3 m / 10 ft bars | 140 mm5.512 in | 70 mm2.756 in | -40÷80 °C-104÷176 °F |
| P15831C | P158P158 | Ti-WhiteTi-White | 3 m / 10 ft bars3 m / 10 ft bars | 90 mm3.543 in | 45 mm1.772 in | -40÷80 °C-104÷176 °F |
| P15832C | P158P158 | Ti-WhiteTi-White | 3 m / 10 ft bars3 m / 10 ft bars | 100 mm3.937 in | 50 mm1.969 in | -40÷80 °C-104÷176 °F |
| P15833C | P158P158 | Ti-WhiteTi-White | 3 m / 10 ft bars3 m / 10 ft bars | 120 mm4.724 in | 60 mm2.362 in | -40÷80 °C-104÷176 °F |
| P15834C | P158P158 | Ti-WhiteTi-White | 3 m / 10 ft bars3 m / 10 ft bars | 140 mm5.512 in | 70 mm2.756 in | -40÷80 °C-104÷176 °F |
| P15801BLC | P158P158 | UHMW-PE BlueUHMW-PE Blue | 3 m / 10 ft bars3 m / 10 ft bars | 90 mm3.543 in | 45 mm1.772 in | -40÷80 °C-104÷176 °F |
| P15802BLC | P158P158 | UHMW-PE BlueUHMW-PE Blue | 3 m / 10 ft bars3 m / 10 ft bars | 100 mm3.937 in | 50 mm1.969 in | -40÷80 °C-104÷176 °F |
| P15803BLC | P158P158 | UHMW-PE BlueUHMW-PE Blue | 3 m / 10 ft bars3 m / 10 ft bars | 120 mm4.724 in | 60 mm2.362 in | -40÷80 °C-104÷176 °F |
| P15804BLC | P158P158 | UHMW-PE BlueUHMW-PE Blue | 3 m / 10 ft bars3 m / 10 ft bars | 140 mm5.512 in | 70 mm2.756 in | -40÷80 °C-104÷176 °F |
| P15801C | P158P158 | UHMW-PE GreyUHMW-PE Grey | 3 m / 10 ft bars3 m / 10 ft bars | 90 mm3.543 in | 45 mm1.772 in | -40÷80 °C-104÷176 °F |
| P15802C | P158P158 | UHMW-PE GreyUHMW-PE Grey | 3 m / 10 ft bars3 m / 10 ft bars | 100 mm3.937 in | 50 mm1.969 in | -40÷80 °C-104÷176 °F |
| P15803C | P158P158 | UHMW-PE GreyUHMW-PE Grey | 3 m / 10 ft bars3 m / 10 ft bars | 120 mm4.724 in | 60 mm2.362 in | -40÷80 °C-104÷176 °F |
| P15804C | P158P158 | UHMW-PE GreyUHMW-PE Grey | 3 m / 10 ft bars3 m / 10 ft bars | 140 mm5.512 in | 70 mm2.756 in | -40÷80 °C-104÷176 °F |
| P15801BC | P158P158 | BluLubBluLub | 3 m / 10 ft bars3 m / 10 ft bars | 90 mm3.543 in | 45 mm1.772 in | -40÷84 °C-104÷183 °F |
| Series: | Side Guide RailSide Guide Rail |
|---|---|
| Material: | Plastic profilePlastic profile |
| Unit of measure: | Meter |
| Box: | - |
